Technical specifications

On Top

Ports & interfaces

Composite video out 1
Video port type VGA, BNC

Power

Input voltage 12 - 24 V

Technical details

TV tuner type Analog

Additionally

Ethernet LAN (RJ-45) ports quantity 1
Wireless technologies Wired
H.264/MPEG-4/MPEG-2 single/quad-stream decoder, audio, serial I/O, alarm in, relay, NTSC/PAL, VGA, BNC, 12-24 VDC, 0.3 kg - Quad-view option
- DVD-quality 25/30 ips at 4CIF
- Ultra-compact size
- Composite video or VGA output
- Alarm inputs and relay output

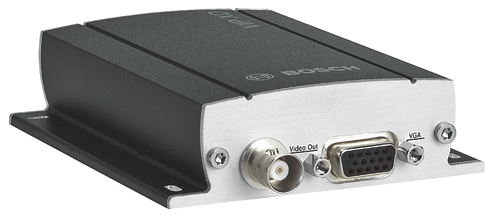

The VIP XD displays DVD-like quality H.264, MPEG‑4 and MPEG‑2 encoded video at up to 25/30 images per second from PAL or NTSC sources over IP networks.
Establish the video connections automatically with the encoder, decoder, or Bosch’s comprehensive video management system. Set up the VIP XD to display video in single-view or quad-view mode. It is capable of decoding up to four video streams at the same time.
Control the viewing mode remotely via a management system like VIDOS. Alternatively, the VIP XD can drive a VGA display directly, thus is ideally suited for applications like flat-screen monitor walls.
The VIP XD is available as an audio model, providing one-channel bidirectional audio communication in parallel to video.
Besides the standard line level interface, it has integrated amplifiers to connect directly to a microphone and speaker.
Ultra-compact in size, the VIP XD is perfect for any application that depends on space-saving solutions.
