Performance
| Equalizer |
N |
| Apple docking compatibility |
iPod |
| Treble adjustment |
Y |
| Bass reflex |
Y |
Ports & interfaces
| Headphone outputs |
1 |
| Microphone in |
Y |
| S-Video outputs quantity |
1 |
| DC-in jack |
Y |
| Bluetooth |
N |
Power
| External power adapter |
Y |
| Power source type |
AC |
| Built-in charger |
Y |
Audio
| Frequency range |
20 - 20000 Hz |
| Impedance |
4 Ω |
Additionally
| Ethernet LAN connection |
N |
| AC adapter bundled |
Y |

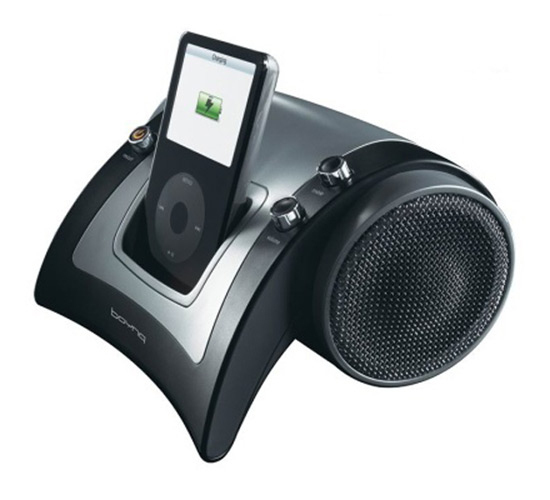

SABRE BLACK - iPod stereo speaker + docking station, 2 x 10W, 4Ohms, 20-20000Hz, 3.5mm Line In/Out, S-Video, 740g, black
Congratulations on purchasing your new high-quality ‘Made for iPod’ stereo speaker with integrated docking station for iPod, better known as the “Sabre” by boynq. Besides playing your songs from your iPod through the speakers, with the new Sabre it is also possible to play photo slideshows or movies on your television.
Contents of the box:
- Sabre Speaker.
- 6 docking inserts (1 already inserted in the Sabre).
- Line-in cable (30 cm).
- Line-out cable (100 cm).
- S-video cable (150 cm).
- Power adapter.
- Instruction manual.
- Equalizer Card.
Product details:
- Volume control switch, turn to adjust the volume.
- Treble control switch, turn to adjust the treble sound settings.
- On/off button with power-on indicator LED, push for switching the Sabre on/off.
- Bass control switch, turn to adjust the bass sound settings.
- iPod dock connector (male 30-pin).
- Docking inserts for: iPod video 30 GB / iPod nano / iPod nano 2nd generation / iPod 10, 15, 20GB models and iPod 60, 80GB video / iPod 30, 40, 60GB models / iPod mini.
- Left integrated speaker (10W, 4 Ohm).
- Right integrated speaker (10W, 4 Ohm).
- Line-in connection (3.5mm), to connect auxiliary sound devices to the Sabre.
- Line-out connection (3.5mm), to connect the Sabre to your Home stereo installation.
- Video-out connection (S-video), to connect the Sabre to your television.
- iPod dock connector (female 30-pin), to enable data synchronization between
the iPod and the computer.
- DC power jack.
- Audio cable (3.5 jack to 3.5 jack).
- Audio cable (3.5 jack to double cinch).
- S-Video cable (S-video to composite).
Installation:
The Sabre is very easy in use. Connect the supplied power adapter to the back of the Sabre and the appropriate power outlet. Place the docking insert, corresponding with your iPod, in the Sabre and dock your iPod in the insert. Switch the Sabre on, a power indicator in the on/off button will light up. The Sabre is now ready for use, just select the desired music on your iPod and press play.
Operation:
Recharging: the iPod will recharge when docked in the Sabre on the AC adapter and automatically when the USB or FireWire docking cable is attached to the Sabre.
Synchronization: To use the Sabre as data synchronization docking station, please connect the original iPod USB or FireWire docking cable (30-pin dock connector) to the Sabre and the computer. No extra software, besides iTunes and iPod software is needed. Once the iPod is inserted into the Sabre, the computer will automatically recognize the iPod. Please note that not all iPod models support FireWire data communication, refer to the iPod manual for further information.
Line-in: Auxiliary sound devices such as iPod shuffe/ MP3 players/ MiniDisc or CD players, can be connected to the Sabre Line-in connector at the back of the Sabre. Connecting an auxiliary device to the Sabre will override the sound from a connected iPod.
Line-out: simply connect the supplied line-out cable to the line-out connection on the Sabre and to a Line-in connection on your Home Stereo.
S-video out: To watch movies or pictures on your television screen, connect the included S-video cable or an original S-video cable between the Sabre and your television.
System requirements:
- A computer platform with a USB 2.0 host connector port or a FW connector port.
- PC with operating system Windows 2000 SP4, Windows XP, Mac OS X 10.1.5.
