Management features
Multicast support |
Y |
MIB support |
RFC 1493, RFC 1643, RFC 1213, RFC 1516, RFC 1724, RFC 1757, RFC 1573 |
Quality of Service (QoS) support |
Y |
Data transmission
MAC address table |
16000 entries |
Supported data transfer rates |
10, 100, 1000, 10000 Mbps |
Switching capacity |
108 Gbit/s |
Number of VLANs |
4096 |
Other features
Packet transfer speed |
80Mpps |
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Wi-Fi |
N |
Networking
Broadcast storm control |
Y |
VLAN support |
Y |
IP routing |
Y |
IGMP snooping |
Y |
Auto MDI/MDI-X |
Y |
Rate limiting |
Y |
Link aggregation |
Y |
Spanning tree protocol |
Y |
Flow control support |
Y |
10G support |
Y |
Ports & interfaces
SFP/SFP+ slots quantity |
4 |
Basic switching RJ-45 Ethernet ports quantity |
20 |
SFP module slots quantity |
4 |
Performance
Noise level |
51 dB |
Stackable |
N |
Design
Electromagnetic compatibility |
FCC Class A (Part 15), EN 55022/CISPR-22 Class A, VCCI Class A |
Safety |
EN 60950-1, CAN/CS-C22.2 No. 60950-1-03, EN 60825-1 Part 1, EN 60825-2 Part 2, IEC 950, UL 1950 3 Ed, UL 60950-1, CSA 950 |
Protocols
Management protocols |
SNMP v1/2/3, TELNET, HTTP |
Security
MAC address filtering |
Y |
Access Control List (ACL) |
Y |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
Y |
Operational conditions
Operating altitude |
0 - 3050 m |
Additionally
Jumbo Frames support |
Y |
Ethernet LAN connection |
Y |
Wireless technologies |
Wired |
20 port & 4-port Combo (SFP), 108 Gbps, Gigabit LAN, 2 x 10Gb Ethernet, MAC 16K, PoE

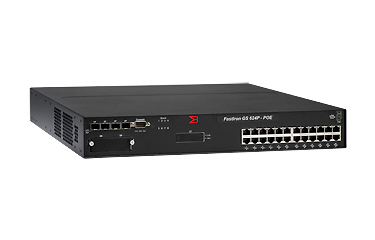

The Brocade FastIron GS Series switches provide flexible options with PoE, dual power supplies, and 10 Gigabit Ethernet uplinks.
