Management features
| Multicast support |
Y |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Number of VLANs |
4096 |
| Switching capacity |
56 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Ports & interfaces
| Console port |
RJ-45 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| DC-in jack |
Y |
| SFP module slots quantity |
4 |
| SFP/SFP+ slots quantity |
4 |
Networking
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| IP routing |
Y |
| Flow control support |
Y |
| DHCP server |
Y |
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| DHCP client |
Y |
| Full duplex |
Y |
Power
| Number of power supply units |
1 |
| Input voltage |
100 - 240 V |
Other features
| Ethernet LAN data rates |
100, 10, 1000 Mbit/s |
| Input frequency |
50 - 60 Hz |
| Power LED |
Y |
| Wi-Fi |
N |
| Networking features |
Gigabit Ethernet |
| Power supply type |
AC |
Security
| SSH/SSL support |
Y |
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
Design
| Safety |
EN 55022: 2006+A1: 2007 Class A, EN 61000-3-2: 2006+A1:2009+A2:2009 Class A, EN 61000-3-3: 2008, EN 61000-6-1: 2007, EN 61000-6-3: 2007, EN 55024: 1998+A1:2001+A2:2003, EN 300 386 (V1.4.1): 2008, IEC 61000-4-2: 2008 ED. 2.0, IEC 61000-4-3: 2006+A1:2007+A2:2010 ED. 3.2, IEC 61000-4-4: 2004+A1:2010 ED. 2.0, IEC 61000-4-5: 2005 ED. 2.0, IEC 61000-4-6: 2008 ED. 3.0, IEC 61000-4-8: 2009 ED. 2.0, IEC 61000-4-11: 2004 ED. 2.0 |
| Form factor |
1U |
| Rack mounting |
Y |
Operational conditions
| Non-operating altitude |
0 - 3000 m |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

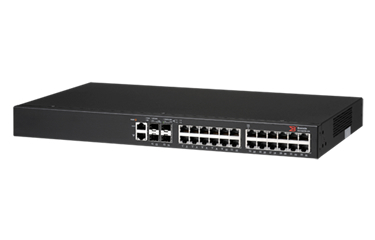

24x ports, 4x 1 GbE SFP ports, 36 W, 56 Gbps, Layer 2, Black
- Offers enterprise-class stackable switching at an entry-level price, allowing organizations to buy what they need now and easily scale as demand grows and new technologies emerge
- Delivers unprecedented feature/price value for enterprise applications, including Unified Communications (UC) and mobility, with 10 Gigabit Ethernet (GbE) and PoE/PoE+
- Provides unmatched availability for low-cost switching with redundant uplink/stacking ports, hitless stacking failover, and configurable power redundancy
- Simplifies network operations and protects investments with Brocade HyperEdgeTM technology, enabling single-point network lifecycle management and advanced services sharing across a heterogeneous stack
- Includes the Brocade Assurance® Limited Lifetime Warranty and three years of technical support
Today’s organizations expect their enterprise campus LANs to deliver more services to more users at a lower cost. These services include next-generation business applications as well as anytime, anywhere access for mobile devices. At the same time, campus LANs must be able to scale easily to meet future demands and efficiently evolve within dynamic business environments.
Brocade® ICXTM 6430 and 6450 Switches provide enterprise-class stackable LAN switching solutions to meet the growing demands of campus networks. Designed for small to medium-size enterprises, branch offices, and distributed campuses, these intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price—without compromising on performance and reliability. The Brocade ICX 6430 and 6450 are available in 24- and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports (see Figure 1)—with or without IEEE 802.3af Power over Ethernet (PoE) and 802.3at Power over Ethernet Plus (PoE+)—to support enterprise edge networking, wireless mobility, and IP communications.
