Brodit Charger for Two Way Radio

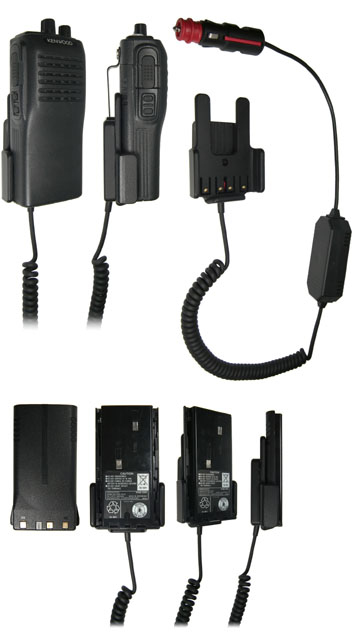

ONLY for use with the Original Kenwood Battery with wings on each side. ( for example KNB-15 1100 mAh) The Vehicle Charging Cradle is custom made for a perfect fit. The cradle holds a two-way radio in an upright position for better reception. Each has a cigarette lighter charging cord permanently attached to the cradle with built in contact points for the battery. Utilizing a Delta-V charging technique, the cradle provides rapid and trickle charging. The Vehicle Charging Cradle can accommodate original battery sizes for a variety of two-way radios. Each cradle has a number of features such as a security timer, overheat sensor, and LED indicator to show that charging is in progress. The indicator changes from red to green when fully charged.

You can charge an extra battery while you use your two-way radio, it is not neccessary to have the battery attached to the radio while charging. Attach onto a ProClip Mounting Platform. General discription:
- Stops on minus delta V
- Timer for maximum charging time
- Possibility of temperature-control with NTC-resistor
- LED status changes when battery is maximum charged

Specifications:
Input voltage: 10-30 V
Max. charging time: 160 min
Fast charging current: 730 mA +/-5%
Trickle charge: 6% of maximum fast charging current
Restart: Possible. Only with an exact number of cells
Battery voltage: 7,2 V
Number of cells: 6
Serial diode in battery: Yes
Quiesent current: 50 mA at trickle charge
