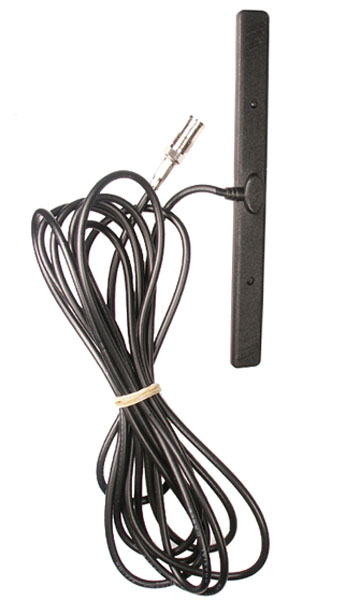

Brodit ProAntenna network antenna

Internal Glass antenna Dual Band and 3 G "RUBBER" 2,4 m RG 174 cable 900 MHZ GSM and 1800 MHW/DCS.
Bendy super soft antenna, attaches to the inside of the vehicle's windshield with adhesive tape. 0 db on both the 900 and 1800 MHZ band.
Impendans : 50 ohm. Vertical polarization. Dimensions: 23x115x3 mm.
2,4 m RG 174 low loss cable with a FME female connector. Black.

Attachment of the antenna:
The antenna is to be attached on the inside of a window.
NOTE! The adhesive tape attaches at once and the antenna can not be moved when it is attached, so be very careful when choosing the position. It is recommended to attach the antenna in a vertical position.

1. Clean the surface and wipe it dry with the enclosed alcohol pad.

2. Peel off the adhesive tape cover on the antenna.

3. Press the antenna firmly against the window.

4. Hide the cable in the vehicle's posts.
