The ProClip is a mounting bracket for the vehicles dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Attention! Read all instructions and look at the pictures before attaching the ProClip.
This ProClip consists of two parts.
Part 1. Attaching part (the smallest part)
Part 2. ProClip face plate

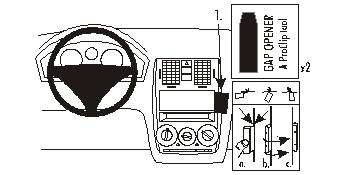

1. Press the thin ends of the enclosed gap openers into the gap between the frame surrounding the controlpanel and the dashboard to widen the gap. Place the gap openers approx. 10 cm apart, one aligned with the upper part of the stereo and one aligned with the lower part of the stereo. Peel off the adhesive tape cover on Part 1. Press the angled edge of Part 1 into the gap between the gap openers.
2. Press Part 1 rightwards, away from the steering wheel, so the angled edge hooks behind the control panel frame and the adhesive tape attaches. Pull out the gap openers.
3. Open up the predrilled holes in Part 2 with a screwdriver (Philips). Peel off the adhesive tape cover on Part 2. Place Part 2 onto Part 1 so the holes match. Screw Part 2 onto Part 1 with the enclosed screw. NOTE! Screw the screws straight into Part 1, in the same angle as Part 1.
4. The ProClip is in place.
