The ProClip is a mounting bracket for the vehicles dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Attention! Read all instructions before attaching the ProClip.

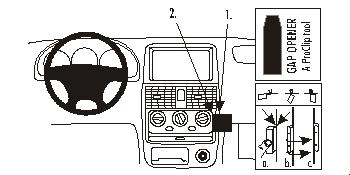

This ProClip consists of two parts.
Part 1. ProClip attaching part (the smallest part)
Part 2. ProClip face plate
1. Press the thin end of the enclosed gap opener into the gap between the dashboard and the frame surrounding the control panel. Peel off the cover of the adhesive tape on Part 1. Press the angled edge of Part 1 into the gap below the gap opener. Press on Part 1, away from the steering wheel, so the angled edge hooks behind the control panel and the adhesive tape attaches. Pull out the gap opener.
2. Open up the predrilled holes in Part 2 with a screwdriver (Philips). Peel off the cover of the adhesive tape on Part 2. Press the long left part into the gap between the control panel and the surrounding frame.
3. Place Part 2 onto Part 1 so the holes match. Screw 2 onto Part 1 using the enclosed screws.
4. The ProClip is in place.
