Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount, ONLY in Canada Attention! Read all instructions before attaching the ProClip.

Peel off the cover of adhesive tape on the ProClip.

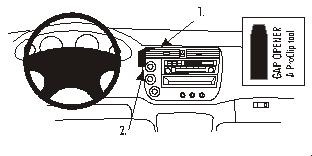

1.Press the thin end of the enclosed gap opener into the gap between the padded dashboard and the air vent panel frame to widen the gap. Peel off the cover of the adhesive tape on the ProClip. Press the angled edge on the upper part of the ProClip into the gap next to the gap opener. Adjust the ProClip so the vertical part on the lower part of the ProClip is positioned over the gap between the climate control and the padded dashboard edge. Pull out the gap opener.

2. Press the thin end of the gap opener into the gap between the climate control and the padded dashboard edge, below the ProClip, to widen the gap.

3. Press firmly forward on the lower part of the ProClip so the grooved edge goes into the gap. Press until you see or hear/feel it snaps into place. Pull out the gap opener.

4. The ProClip is in place.
