The ProClip is a mounting bracket for the vehicles dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Attention! Read all instructions before attaching the ProClip
Part 1: The attaching part (the smallest part)
Part 2: The ProClip faceplate (the big part)
Peel off the cover of the adhesive tape on Part 1

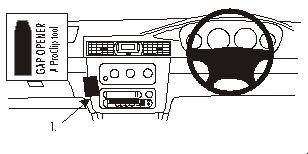

1. Place the thin angled end of Part 1 into the gap between the padded dashboard and the wood grain panel. Press the angled edge firmly into the gap and bend Part 1 to the left until you hear/feel it snaps behind the wood grain panel.
2. Part 1 is in place.
3. Press a screwdriver firmly through the large holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the large holes in Part 2 match the small holes in Part 1 and the adhesive tape on Part 2 is on the right side attaching to the wood grain panel. Screw Part 2 onto Part 1 using the enclosed screws. Do not screw the screws straight in but in the angle of Part 1.
4. The ProClip is in place.
