The ProClip is a mounting bracket for the vehicle's dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Please read all of the instructions and look at the pictures before attaching the ProClip. It is important to place the ProClip in the same position as shown in the pictures.
This ProClip consists of two parts.
Part 1: Attaching part.
Part 2: ProClip face plate.

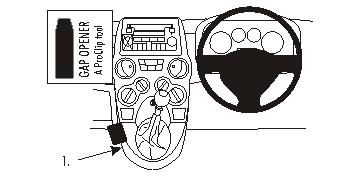

1. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the gearshift and the console, to widen the gap. Peel off the cover of the adhesive tape on Part 1. Press the angled edge on Part 1 into the gap next to the gap opener. Pull out the gap opener.
2. Open upp the predrilled holes in part 2 with a screwdriwer (Philips). Peel off the cover of the adhesove tape on Part 2. Place Part 2 onto Part 1 so the holes match and the adhesive is to the right. Screw Part 2 onto Part 1 with the enclosed screws.
3. The ProClip is to be in the exact same position as shown in the picture.
4. The ProClip is in place.
