Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount, ONLY for car with navigation unit. ONLY for wood grain panel Please read all of the instructions and look at the pictures before attaching the ProClip.

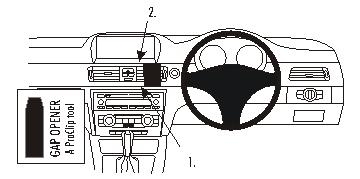

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of the enclosed gap opener into the gap between the wood grain trim and the center console panel, to widen the gap. When you do this the wood grain trim will flex upwards a few millimeters, which is OK. Peel off the cover of adhesive tape on the ProClip.

2. Press the grooved edge on the lower part of the ProClip into the gap next to the gap opener. Pull out the gap opener.

3. Press the gap opener into the gap between the wood grain trim and the dashboard ledge. Press forward on the top part of the gap opener, to widen the gap even more. At the same time: press forward on the upper part of the ProClip, and then down on the edge of the ProClip, so the angled edge goes into the gap next to the gap opener. Pull out the gap opener.

4. The ProClip is in place.
