Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Please read all of the instructions and look at the pictures before attaching the ProClip.

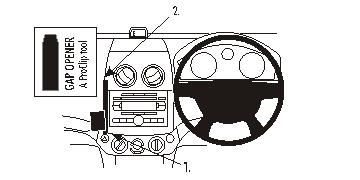

1. Press the thin end of the enclosed gap opener into the gap between the climate console panel frame and the dashboard overhang, to widen the gap.
Peel off the cover of adhesive tape on the ProClip. Press the curved edge on the lower part of the ProClip into the gap next to the gap opener.

2. Flip the ProClip upwards, towards the air vent, so the curved edge on the lower part of the ProClip hooks behind the climate control panel. Pull out the gap opener.

3. Press the gap opener into the gap in the dashboard. Press firmly forward on the right side of the ProClip so the grooved edge goes into the gap below the gap opener. Press until you see the thin grooved edge is all the way into the gap. Pull out the gap opener.

4. The ProClip is in place.
