Brodit ProClip

The ProClip is a mounting bracket for the vehicle's dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount Please read all of the instructions and look at the pictures before attaching the ProClip.

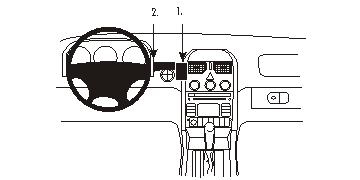

This ProClip consists of two parts.
Part 1. Attaching part (the large part)
Part 2. ProClip face plate.

1. Peel off the cover of the adhesive tape on Part 1. Press the curved edge on the right part of Part 1 into the gap between the frame surrounding the control panel and the dashboard. Press the left end of Part 1 towards the dashboard so the curved edge on the right part hooks behind the frame surrounding the control panel.

2. Press forwards on left side of part 1 so the grooved edge snaps into place in the gap between the dashboard and the frame surrounding the control panel. Press until you hear/feel it snaps into place.

3. Open up the predrilled holes in Part 2 with a screwdriver (Philips). Place Part 2 onto Part 1 so the holes match. Screw Part 2 onto Part 1 with the enclosed screws.

4. The ProClip is in place.
