Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Right mount Please read all of the instructions and look at the pictures before attaching the ProClip.

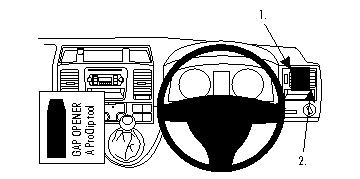

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Peel off the adhesive tape cover on the ProClip. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the air vent and the dashboard to widen the gap, and hold it in place. Press the left edge on the angled upper part of the ProClip into the gap next to the gap opener.

2. Pull out the gap opener and press it into the gap between the frame surrounding the air vent and the dashboard (on the right side of the ProClip) and hold it in place. Press down on the right side of the upper part of the ProClip so all of the angled edge goes into the gap. Pull out the gap opener.

3. Pull the ProClip toward you and press it downward. Hook the angled edge on the lower part under the frame surrounding the air vent. Press upward on the bottom part of the ProClip so the adhesive tape attaches.

4. The ProClip is in place.
