Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount, ONLY for models with factory navigation Please read all of the instructions and look at the pictures before attaching the ProClip.

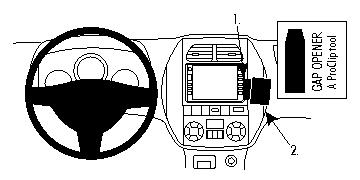

1. Press the thin end of the enclosed gap opener into the gap between the stereo and the surrounding panel frame, to widen the gap. Peel off the adhesive tape covers on the ProClip. Press the angled edge on the left side of the ProClip into the gap below the gap opener. Start with the upper corner of the ProClip, then follow through at the lower part of the ProClip. Pull out the gap opener.

2. Press the gap opener into the gap between the center console panel edge and the dashboard. Slide the gap opener down, while it is in the gap, towards the ProClip.

3. Press firmly forward on the right side of the ProClip so the angled edge goes into the gap below the gap opener. Press until you see or hear/feel it clicks into place. Pull out the gap opener.

4. The ProClip is in place.
