Brodit ProClip

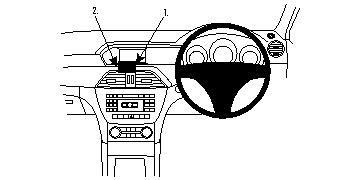

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount Please read all of the instructions and look at the pictures before attaching the ProClip. NOTE: It is important to place this ProClip in the exact same position as shown in the pictures.

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Peel off the adhesive tape covers on the ProClip. Press downward on the panel by the information window so it flexes slightly and the gap is widened. You will now see where the gap has a wider section. Press the curved edge on the upper part of the ProClip into the gap, into the wider section.

2. Flip the ProClip downward so the curved upper edge hooks behind the frame surrounding the information window.

3. Pull the ProClip toward you and hook the angled edge on the lower part into the gap between the wide trim and the narrow trim.

4. The ProClip is in place.
