Software
| Mac operating systems supported |
Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite, Mac OS X 10.8 Mountain Lion |
| Mobile operating systems supported |
Windows Phone, Windows RT |
| Drivers included |
Y |
Performance
| Duplex printing modes |
Manual |
| Printing colours |
Black |
| Processor frequency |
800 MHz |
| Digital sender |
N |
| Printing |
Mono |
| Faxing |
Mono |
| Scanning |
Colour |
| Number of print cartridges |
1 |
| Recommended duty cycle |
0 - 7500 pages per month |
| Maximum duty cycle |
125000 pages per month |
| Built-in processor |
Y |
| Duplex functions |
Copy, Fax, Print, Scan |
| Copying |
Mono |
| E-mail protocols |
SMTP |
| Fonts included |
66 |
| Print technology |
Laser |
Copying
| N-in-1 copy function (N=) |
2, 4 |
| Copy speed (normal quality, black, A4) |
46 cpm |
| Time to first copy (black, normal) |
9.5 s |
| Maximum number of copies |
99 copies |
| Copier resize |
25 - 400% |
| PC free copying |
Y |
| Maximum copy resolution |
1200 x 600 DPI |
Sound emission
| Noise level (quiet mode) |
53 dB |
| Copying noise level |
57 dB |
| Noise level (idle) |
35 dB |
Printing
| Time to first page (black, normal) |
7.5 s |
| Print speed (black, normal quality, A4/US Letter) |
46 ppm |
| Warm-up time |
4.7 s |
| N-up printing |
2, 4, 9, 16, 25 |
| Secure printing |
Y |
Power
| Power consumption (average operating) |
745 W |
| Power consumption (off) |
1.6 W |
| Power consumption (PowerSave) |
390 W |
| Energy saving mode |
Y |
| Energy Star Typical Electricity Consumption (TEC) |
2.285 kWh/week |
| Power consumption (sleep) |
8 W |
Paper handling
| Auto Document Feeder (ADF) media weight |
64 - 90 g/m² |
| Maximum ISO A-series paper size |
A4 |
| Non-ISO print media sizes |
Executive, Folio, Legal, Letter |
| Custom media width |
76.2 - 215.9 mm |
| Custom media length |
127 - 355.6 mm |
| Multi-Purpose Tray media weight |
60 - 200 g/m² |
| Standard tray media weight |
60 - 120 g/m² |
Certificates
| Energy Star certified |
Y |
| Blue Angel certified |
Y |
| Nordic Swan |
Y |
Output capacity
| Standard output capacity |
250 sheets |
Scanning
| Gray scale levels |
256 |
| Maximum scan resolution |
19200 x 19200 DPI |
| Image formats supported |
JPG |
| Scan speed (black) |
24 inch/min |
| Optical scanning resolution |
1200 x 1200 DPI |
| Scan to |
E-mail, E-mail Server, FTP, File, Image, OCR, USB |
| Scan drivers |
ICA, ISIS, SANE, TWAIN, WIA |
| Scan technology |
Dual CIS |
| Duplex scan speed (colour) |
17 ppm |
| Maximum scan area |
A4 (210 x 297) mm |
| Input colour depth |
48 bit |
| Output colour depth |
24 bit |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Supported network protocols (IPv4) |
ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS name resolution, DNS resolver, mDNS, LLMNR responder, LPR/ LPD, custom Raw Port/Port9100, IPP/IPPS, FTP server, TELNET server, HTTP/HTTPS server, TFTP client en server, SMTP client, SNMPv1/v2c/ v3, ICMP, web services (printen), CIFS client, SNTP client, LDAP |
| Online services supported |
Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, OneDrive, OneNote |
| Wi-Fi |
Y |
| Supported network protocols (IPv6) |
NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, custom raw port/ Port9100, IPP/IPPS, FTP server, TELNET server, HTTP/HTTPS server, TFTP client en server, SMTP client, SNMPv1/v2c, ICMPv6, web services (print), CIFS client, SNTP client, LDAP |
Fax
| Modem speed |
33.6 Kbit/s |
| Error Correction Mode (ECM) |
Y |
| Fax forwarding |
Y |
| Fax delayed sending |
Y |
| Fax dual access |
Y |
Input capacity
| Number of standard paper trays |
1 |
| Standard input capacity |
520 sheets |
| Paper input type |
Paper tray |
Additionally
| Ethernet LAN connection |
Y |
| Scan speed (colour) |
20 inch/min |
| Scan speed (color) |
50 ppm |
| Scan type |
Flatbed & ADF |

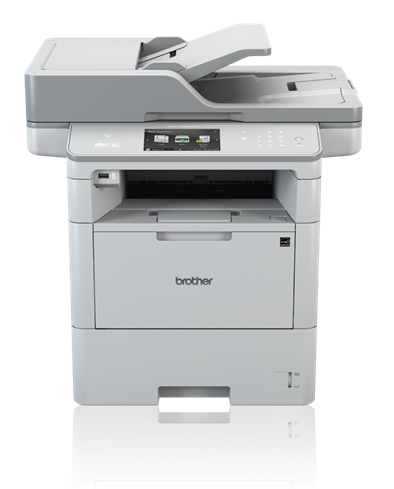

MFC-L6800DW - 46ppm, 1200 x 1200dpi, 512MB, 12.192 cm (4.8 ") LCD, USB 2.0, Ethernet, Wi-Fi, 745W, 18.9kg
The Brother MFC-L6800DW business-durable monochrome laser All-in-One is the ultimate choice for mid-sized workgroups with higher print volumes. It offers great value due to the included high-yield in-box toner cartridge and low cost output thanks to the super high-yield replacement toner cartridge. Plus, maximize your productivity with fast printing and copying up to 48ppm as well as a 520-sheet capacity paper tray that holds more than a ream of paper. For even fewer refills, expand the paper capacity to 1,610 sheets with optional trays. This high-performance All-in-One offers advanced scanning features with multiple scan to destinations and a fastest-in-class monochrome scan speed to help optimize your workflow‡. Advanced security features including an integrated NFC card reader and Active Directory® support provide network user authentication. Customize your workflow with the color Touchscreen display and directly scan to and print from popular business cloud services.
- Fast, high-quality printing for higher print volumes. Featuring a business-durable design with high-speed printing and copying up to 48 pages per minute, this high-performance All-in-One is ideal for mid-sized workgroups.
- Low total cost of ownership. Includes a high-yield 8,000-page‡ toner cartridge for built-in value. For even lower cost printing, use the super high-yield 12,000-page‡ replacement toner cartridge.
- Flexible network connectivity†. Built-in wireless 802.11b/g/n and Gigabit Ethernet interfaces allow you to share the MFC-L6800DW with multiple users on your network.
- Advanced duplex capabilities. Automatic two-sided printing and copying helps save paper. Plus, the 80-page capacity duplex auto document feeder scans both sides of the page in a single-pass for two-sided monochrome scanning up to 100ipm‡.
- Large, expandable paper capacity‡. Easily handle your large print jobs via an adjustable 520-sheet capacity paper tray and 50-sheet capacity multi-purpose tray. For additional capacity, optional paper trays are available in 250-sheet or 520-sheet capacities enabling users to configure the All-in-One with multiple trays in a way that best meets their application requirements – up to 1,610 sheets total capacity.
- 4.85" color Touchscreen display. Allows for easy menu navigation and creation of up to 48 customized shortcuts. Plus, scan to popular business cloud services‡ directly from the Touchscreen including: EVERNOTE®, DROPBOX, GOOGLE DRIVE™, ONENOTE®, and more
- Advanced security features. Offers an integrated NFC card reader and Active Directory® support for network user authentication to help protect against unauthorized access to the device. Other security features include: Secure Function Lock, LDAP, SSL/TLS, and more.
- Fast scanning with advanced capabilities‡. Features a fastest-in-class monochrome scan speed of up to 50ipm‡ and multiple scan-to destinations to adapt to your customized workflow. Scan-to destinations include E-mail, SSH Server (SFTP), USB, SharePoint®, Cloud, Network Folder (CIFS), and more.
- Convenient mobile device printing and scanning. Print from your mobile device via: AirPrint™, Google Cloud Print™ 2.0, Mopria®, Brother iPrint&Scan, Cortado Workplace, and Wi-Fi Direct®. Plus, wirelessly scan to your mobile device with the Brother iPrint&Scan app.
- Outstanding customer support. The Brother MFC-L6800DW offers a 1 year limited warranty with free phone support for the life of your product.
