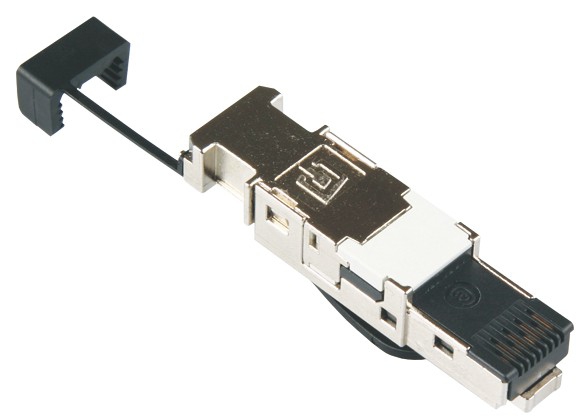

BTR NETCOM E-DAT Industry IP20 RJ45 field plug

E-DAT Industry IP20 RJ45 field plug black - field plug Cat.6A with multiport capability
- suitable for 10 GBits as per IEEE 802.3an
- eight-core RJ45 plug (can be assembled in the field) for AWG 22
- AWG 26/7-22/7, AWG 24/1-22/1 can be connected
- solid copper wire diameter 0.4 to 0.64 mm
- stranded copper wire diameter 0.48 to 0.76 mm
- core diameters up to 1.6 mm
- overall cable diameter from 5.5 to 8.5 mm
- plug consists of only two parts
- easy assembly without special tools
- on assembly the cable is physically secured to the loader part
- easily fitted cable strain relief
- cable strain relief can be snapped on as color coding after assembly
- industry-compatible zinc die-cast housing
- protected latch
- can be used as a test plug on the IP67 side of variants 1, 4, 5, 6 and 14
