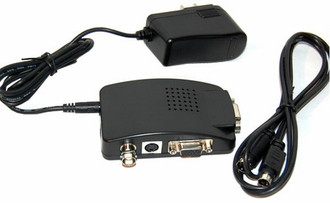

Bytecc HM104 video converter

BNC Composite & S-Video - VGA Converter (Wide screen) This Converter allows you to convert a composite BNC video signal to a VGA signal, thus allowing you to use a standard VGA/SVGA monitor with devices that have BNC video outputs. For example, surveillance DVRs, security cameras and quad video processors can be displayed on your VGA/SVGA monitor. It is compact in size with easy plug and play installation.

- Composite Video Input : BNC.
- Video Inputs: 1 X Composite BNC Video, 1 X S-Video And 1 X VGA.
- Video Output: 1 X VGA.
- Switch in between 3 Inputs & output 1 to VGA.
- VGA Input pass through to VGA Output directly.
- Support PAL / NTSC.
- Supports Wide-Screen 16:9 And 16:10 LCDs.
- Optional Resolution: 800 X 600/60HZ, 800 X 600/75HZ, 1024 X 768/60HZ, 1280 X 720/60HZ, 1440 X 900/60HZ, 1600 X 900/60HZ, and 1680 X 1050/60HZ.
- Lightness, Hue, Contrast, Saturation, Color are adjustable.
- Settings will Auto-saved when switched off.
- Composite Video & S-Video resolution up to 1680 x 1050.
- 3D Video-Processing used to provide display in rich colors.
- Dimension: 3.9'' X 2.4 X 1''.
