Ports & interfaces
| DC-in jack |
Y |
| HDMI ports quantity |
2 |
| Audio (L,R) out |
1 |
| Composite video out |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Host interface |
USB 2.0 |
| Serial ports quantity |
1 |
| Microphone in |
N |
| USB connector type |
USB Type-A |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Ethernet LAN connection |
Y |

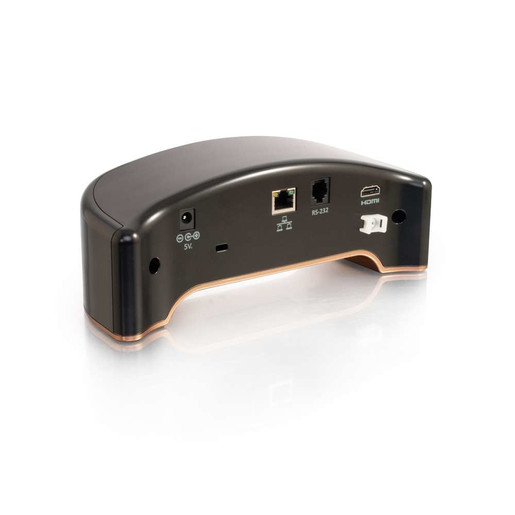

TruLink Media Gateway Connectivity Panel Desk Mount, Medical Grade, Standard Black, D2
The TruLink® Media Gateway is a powerful all-in-one audio/video connectivity panel that enables users to easily and simply connect a wide array of consumer electronics devices to an HDTV. This active connectivity panel provides hassle-free connectivity for laptops, iPod® / iPad® / iPhone®, digital/video cameras, Blu-ray™ or DVD players and game consoles to HDTVs or projectors. The automatic switching functionality provides ease of use, while the USB port adds a convenient way to charge portable electronics. Designed to mount on conference room tables, podiums or other casegoods, its versatility makes it a real problem solver for multiple applications in the corporate, education, healthcare and hospitality markets. The medical grade power supply is designed to comply with safety standards required in healthcare facilities.
The TruLink Media Gateway is able to automatically upscale 480i (NTSC) and 576i (PAL) Composite Video and video signals from iPod® / iPad® / iPhone® up to 1920 x 1080p and display native HDMI® digital video signals up to 1920 x 1080p. It also supports resolutions of up to 1280 x 1024 through the HD15(VGA) input. The TruLink Media Gateway is designed for easy maintenance and support. Firmware updates can be deployed manually via the front USB port or automatically through the rear Ethernet port via an FTP server, potentially saving time and hundreds of hours in labor.*
Not sure which TruLink Media Gateway is perfect for your application? Read our selection guide to help you decide or view our videos on how to use the TruLink Media Gateway by visiting this link.
Note: This product is not designed to be compatible with our HDMI over Cat5 extension products. The TruLink Media Gateway is FCC certified Class A for commercial applications and should not be used in residential installations
Due to Apple® using the Lightning connector on the iPhone 5 instead of the 30-pin dock connector, the iPhone 5 is compatible with the Media Gateway for charging only. To charge the iPhone 5 it must be connected to the USB port on the Media Gateway using an Apple® Lightning to USB cable. The cable used to connect Apple® devices to the Media Gateway for audio and video requires that the Apple® device use a 30-pin dock connector. We will continue to monitor the development process of the iPhone 5 for changes that may make that product fully compatible with the Media Gateway.
*Firmware update speed depends upon the load of the network. Updates will only occur when the Media Gateway is not in use.
