Performance
| Built-in power socket |
N |
| Top Wi-Fi standard |
IEEE 802.11n |
| PowerLine standard |
HomePlug AV |
| Modulation |
8-QAM, 16-QAM, 64-QAM, 256-QAM, BPSK, ROBO, 1024-QAM, QPSK, QAM, OFDM, 4096-QAM |
| Quality of Service (QoS) support |
Y |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11b, IEEE 802.11g |
| Wi-Fi |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Transfer rate (Mbps) |
500 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |

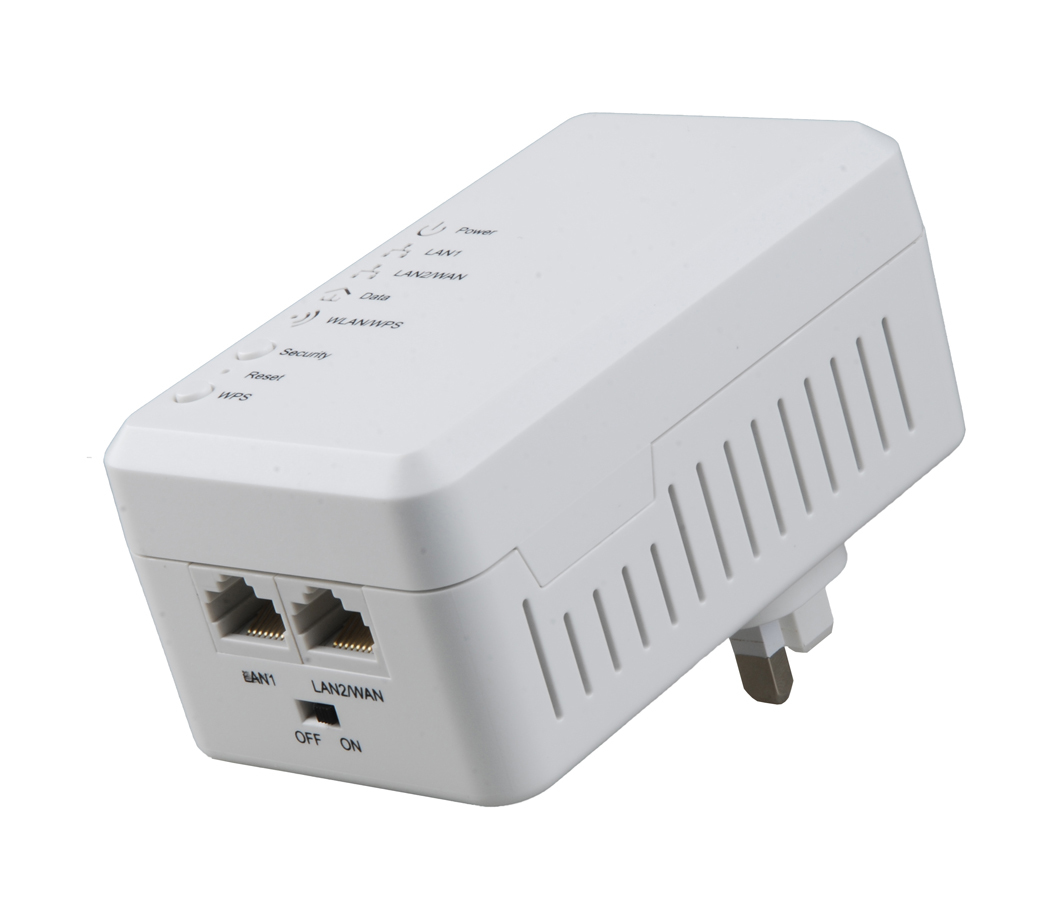

500 Mbps Wireless Homeplug, 2T2R, WEP/WPA, DHCP, 100 - 240 V, 50/60 Hz
The powerline adaptor uses your existing electrical wiring to transmit signals anywhere in the building. They are an ideal solution for those who have trouble with wireless signals in different rooms or levels.
The wireless homeplug comes with a default IP address of 192.168.1.1 so some network configuration knowledge will be required to install and setup. The configuration settings can be accessed by directly connecting to the wireless homeplug and typing 192.168.1.1 in a browser and enter the username and password contained in the user manual, the user manual also contains important information on setting up the homeplug and security.
The utility contained on the CD is used to secure the data transmitted over the electrical circuit and set the homeplug to network groups.
<b>PLC Features</b>
- Power voltage range is 100 to 240 V AC 50/60Hz.
- Supports HomePlug AV protocol and the IEEE1901 protocol.
- PLC physical link rate is up to 500Mbps.
- Support the following modulation schemes: OFDM QAM 4096/1024/256/64/16/8, QPSK, BPSK, and ROBO.
- Supports 128-bit AES link encryption and user NMK authentication, for providing secure power line communication.
- Supports windowed OFDM with noise mitigation based on patented line synchronization technique for improving data integrity in noisy conditions.
- Supports channel self-adaptation and channel estimation for maximizing real-time throughput.
- Supports priority-based CSMA/CA channel access scheme for maximizing efficiency and throughput.
- Supports four-level QoS.
- Supports ToS and CoS packet classifications.
- Supports IGMP multicast management session.
<b>Wireless Features</b>
- Supports IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.3, IEEE802.3u, IEEE802.11i and IEEE802.11e.
- Supports 2T2R mode. Transmission data rate is up to 300Mbps.
- Supports WEP and WPA for secure data transmission.
- Supports DHCP server.
- Supports version upgrade through Web page.
- Supports restoring factory default settings.
- Supports the following wireless security modes: WEP, WPA-PSK, WPA2-PSK, and WPA/WPA2-PSK
- Supports system status display.
- Supports system log.
