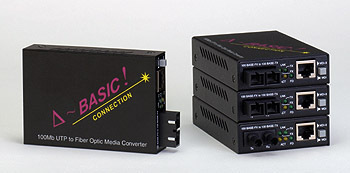

Canary BC-TFM2 1310nm Multi-mode Black network media converter

100BASE-TX TO FX multi-mode Converter multi-mode ST Connector, 2 km The BASIC! CONNECTIONS Media Converter family is specifically designed to offer the lowest cost, no nonsense connections between Copper based and Fiber based Fast Ethernet segments. Expansion of existing networks can be easily achieved with minimum cost and complexity. The converter is completely transparent to the network - so network performance is unchanged. Easily expands the size of an existing Network using multi-mode Fiber within a building or across a campus.

Extends link distances between buildings and campuses. Fiber segments can extend to maximum of 40,000 meters between networking nodes.

The BASIC! CONNECTIONS Media Converter family is compatible with Canary's full featured CFT-206X standable units and CCM-1240X and CN-204X rack chassis cards.

- Complies with 802.3u 100BASE-TX/FX standard.
- MDI/MDI-X push button selection for RJ-45 port configuration.
- Side Switch to enable or disable Auto-Negotiation support.
- Extended distances up to 2 km multi-mode (40 km with single-mode) under full-duplex mode.
- Compatible with other 100Base-TX/FX devices.
- Status LEDs for FD, RCV & LNK to easily monitor converter operation.
- External power supply.
- FCC Class A & CE approved.
