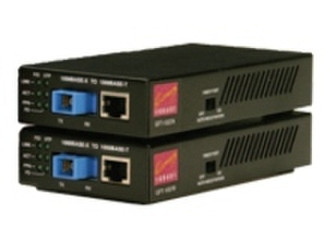

Canary CCM-1202 10Mbit/s 850nm Multi-mode,Single-mode Black network media converter

CCM-1202 - UTP / MM, -15.2 dBm Tx PWR, -34.4 dBm Rx Sensitivity, 19.2 dB Budget, ST, 850 ηm, 2 Km Canary CCM-120X Media Converter modules are long-time standards for 10Mbs media conversion, and are still available for legacy applications. They provide flexible combinations of BNC/ UTP, BNC/Fiber, and UTP/Fiber Conversion. Fiber ports provide multi-mode or single mode connections.

- Media Converter modules are Compliant with IEEE 802.3 10 Mbs Ethernet standards
- 10 Mbs Copper-to-Fiber modules are transparent to Full and Half-duplex traffic
- Models with BNC connectors have a switch for internal 50 Ohm Termination
- Models with Fiber connectors are compatible with 10BASEFL (FOIRL)
- Models with UTP connectors have Auto-polarity protection
- Full array of status / diagnostic LEDs

<b>Cable Specifications:</b>
- BNC: 50 Ohm RG-58(U) ThinNet
- UTP: Category 3,5 Twisted Pair
- Fiber:
Multi-mode: 50.0/125, 62.5/125,
100/125 μm
Single-mode: 8.7-9.0/125 μm
