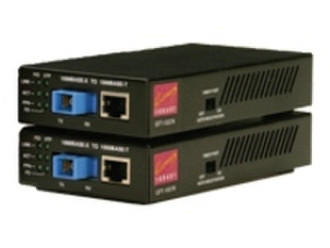

Canary CCM-1247SA 100Mbit/s 1550nm Single-mode Black network media converter

CCM-1247SA - UTP / SM, -14 - -8 dBm Tx PWR, -33.0 dBm Rx Sensitivity, 25.0 dB Budget, SC, 1550/1310 ηm, 20 Km <b>Fast Ethernet UTP-to-Single Fiber, Bi-Directional Single-Mode</b>

Canary 100 Mbs UTP / Single-Fiber Media Converters are available with 20, 40 and 60 kilometer transmission ranges. They function identically to units with standard duplex fiber connectors. CCM-1247A and CCM-1247B Media Converters are the first in the industry to speedup Spanning Tree link recovery by employing Link Fault Signaling (LFS) technology while supporting Far-End Fault- Indication and parallel detection. Single-fiber converters must be connected as complementary A & B pairs.

- Switch for Hard-Setting Full-Duplex or 100BASE-TX Autonegotiation for 100 Mbs, Full and Half-duplex operation
- Internal Auto-sensing, MDI / MDI-X crossover switch for proper Network Interface Card or Switch connections
- Switch enabled Link Fault Signaling (LFS) – Forwards lost link signals to each connected host
- Uses Single-Fiber, single-mode connectors operating on1550 ηm and 1310 ηm wavelengths
- A full array of status / diagnostic LEDs
