Power
| Input voltage |
120 V |
| Input frequency |
60 Hz |
| External power adapter |
Y |
Performance
| Tx power (min) |
-15 dBmW |
| Maximum transfer distance |
20000 m |
| Fiber mode structure |
Single-mode |
| Tx power (max) |
-8 dBmW |
| Wavelength |
1310 nm |
| Link budget |
26 dB |
| Sensitivity |
-34 dBmW |
Ports & interfaces
| DC-in jack |
Y |
| Fiber ports quantity |
1 |
Networking
| Auto MDI/MDI-X |
Y |
| Duplex system |
Half, Full |
Additionally
| Wireless technologies |
Wired |
| Transfer rate (Mbps) |
100 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |

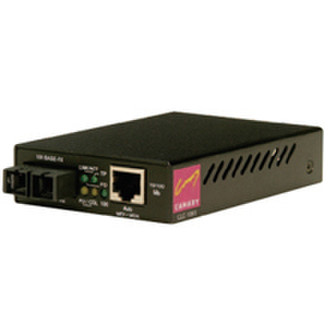

CLE-1062S - UTP / SM, -15.0 - -8.0 dBm Tx PWR, -34.0 dBm Rx Sensitivity, 26.0 dB Budget, ST, 1310 ηm, 30 Km
Canary’s LAN Extender, CLE-106X, UTP-to-Fiber Bridging Media Converters are longtime standards for 10/100Mbs UTP media conversion to multi-mode or single-mode fiber. With the CLE-106X series, the transition between 10 Mbs and 100 Mbs is very straightforward. They easily make simple connections linking legacy 10 Mbs networks and newer 100 Mbs segments into a unified network.
Functioning as Collision Domain Extenders, a pair of CLE-106X units allows users of 100 Mbs networks containing older half-duplex equipment with distance limitations to extend their effective reach by segmenting the network into two separate 100 Mbs half-duplex collision domains. Better yet, the network can be segmented into half-duplex and fullduplex segments with a CLE-106X bridging and buffering the data traffic between them. Each segment is free to operate within its optimal performance envelope without negatively impacting each other.
- Converters are Compliant with IEEE 802.3, 802.3u 10/100 Mbs Ethernet standards
- 148,800 packets/second forwarding rate at 100 Mbs and 14,880 pps at 10 Mbs
- Switch for hard-setting (Forced) Full-duplex or Half-duplex operation on fiber port
- Models with Fiber connectors are compatible with 100BASE-FX
- Converters are transparent to Full and Half-duplex traffic
- UTP port connectors have MDI / MDI-X crossover switch
- Full array of status / diagnostic LEDs
- 512 MAC address lookup table
- Store-and-forward operation
- MAC Layer Bridge
- 5K Byte buffer
- IEEE 802.1D
- Auto-sensing, 110 / 230 VAC Power Supply
- Additional models include: Single-Fiber Bi-Directional singlemode and Extended Reach single-mode are available as special order
