Performance
| Tx power (min) |
-20 dBmW |
| Maximum transfer distance |
2000 m |
| Fiber mode structure |
Multi-mode |
| Tx power (max) |
-14 dBmW |
| Wavelength |
1310 nm |
| Rx power (min) |
-31 dBmW |
| Link budget |
17 dB |
| Fiber cable diameters supported |
125 µm |
Additionally
| Wireless technologies |
Wired |

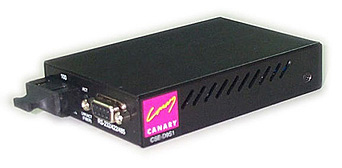

RS-232 to Multi-mode Fiber Converter (SC Connector), 2 km
The CSC-2D9-M1, CSC-2D9-M2, CSC-2D9-S1, CSC-2D9-S2 are Canary's value-priced media converters designed specifically for linking RS-232 devices over multi-mode and single-mode fiber cable. They allow the direct connection of serial devices over long distances using reliable, low EMI, fiber links while supporting data rates up to 120Kbps to host computers. This makes them applicable for environments employing industrial sensors and process control; remote sensing and surveillance; and other remote access applications using RS-232 connectors.
CSC-2D9-M1, CSC-2D9-M2 (multi-mode) and CSC-2D9-S1, CSC-2D9-S2 (single-mode) media converters are solid solutions for applications that require a reliable link to remote terminals or host computers. Each unit offers cost-efficient extension of multi-mode distances ranging to two Km, while single-mode versions can reach to twenty Km, or sixty Km (long haul single-mode). Their simple-to-setup and install characteristics, makes it easy to combine the advantages of fiber technology with a RS-232 copper-based network.
Cabling Flexibility – The CSC-2D9-M1/CSC-2D9-M2 and CSC-2D9-S1/CSC-2D9-S2 enables network managers to install fiber cabling anywhere within the existing network environment without requiring removal, replacement or modification of the current copper based RS-232 infrastructure.
Cost-effective - By simplifying the integration of the existing copper cabling infrastructure with newer fiber optic cabling, the CSC-2D9 series represents a cost-effective solution for network administrators eager to keep costs down when upgrading or expanding the reach of their serial networks.
Security - Canary's Converters are ideal for connecting data communication devices situated within manufacturing intensive environments where electromagnetic (EMI) and radio frequency interference (RFI) is a major concern. Data integrity is also assured due to the secure nature of fiber optic cable that makes any compromise in the transmission path detectable.
Easy Implementation - The design of the CSC-2D9 series allows for straightforward 'plug-and-go' operation. Additionally, the compact form factor of each device translates into installation flexibility.
- Complies with EIA/TIA-232, EIA/TIA-574 & CCITT V.28 standards
- Supports asynchronous data transfer rate up to 120K
- LED status indicators (power, link and receive)
- DTE, DCE setting push-button
- Allows stand-alone installation
- SC / ST connectors standard
- FCC Class A and CE approved
- External power supply
