Performance
| Tx power (min) |
-20 dBmW |
| Maximum transfer distance |
2000 m |
| Fiber mode structure |
Multi-mode |
| Tx power (max) |
-14 dBmW |
| Wavelength |
1310 nm |
| Rx power (min) |
-31 dBmW |
| Link budget |
17 dB |
| Fiber cable diameters supported |
125 µm |
| Buffer size |
512 KB |
Additionally
| Wireless technologies |
Wired |

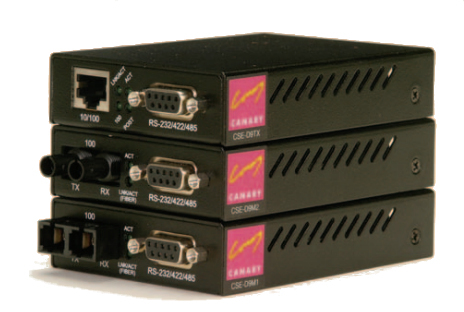

RS-232/422/485 to 100BASE-FX Multi-mode Converter (SC Connector)
Canary's competitively priced CSE-D9M1/D9S1 series of Serial to Fiber media converters is a cost-effective solutions enabling the integration of Serial devices with Fiber optic Ethernet based networks.
The simple setup and installation combined with multi-interface (RS-232/422/485) support, makes a CSE-D9M1/D9S1 converter a simple tool to easily migrate short-ranged serial devices to Fiber-based networks. By deploying CSE-D9M1/D9S1 converters, users can retain and continue to make investments in low cost serial devices while enjoying longer ranged, economical Fiber links.
Featuring a multi-interface DB-9 connector (RS-232, RS-422 and RS-485), the CSE-D9M1/D9S1 series media converter family is the right solution when reliably linking remote terminals to host computers is required. They are perfect in such applications as manufacturing process control and security applications. Each unit offers economical, transport of serial data over Ethernet fiber networks with extended distance of up to 60km (single-mode fiber), along with a simple setup and installation.
Flexibility – The CSE-D9M1/D9S1 series facilitates integration of fiber cabling anywhere within an existing network environment without requiring removal, replacement or modification of the current copper based RS-232/422/485 sensor and control infrastructure.
A terminator DIP Switch is used to simply activate a terminating resistor making the CSE-D9M1/D9S1 series display the illusion or characteristics of an infinite line thereby creating a true multi-drop network.
Cost-effective - By facilitation the integration of the existing copper plant with newer fiber optic cabling, the CSE-D9M1/D9S1 series represents a cost-effective solution for network users eager to keep costs down when upgrading for longer transmission distances.
Security - Ideal for connecting data communications devices situated in severe manufacturing environments where electromagnetic/radio frequency interference is a major concern. Data integrity is also assured due to the nature of fiber optic cable making any comprised data during transmission, detectable.
Easy Implementation - The design of the CSE-D9M1/D9S1 series allows straightforward 'plug-and-go' installation. Additionally, its compact form factor translates into installation flexibility; suitable for standalone (desktop) or wall-mounting.
- Complies with EIA/TIA-232E, EIA/TIA-422, EIA/TIA-485
- Diagnostic LEDs for device status (power, link and activity)
- Supports asynchronous data transfer rate up to 500 Kbps
- DTE, DCE push-button for device configuration
- Supports full and half-duplex modes
- DIP switch enabled "terminator"
- Available SC/ST connectors
- External power supply
- FCC Class A and CE approved
