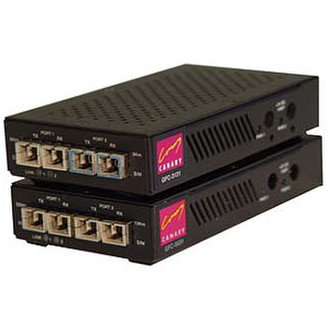

Canary GFC-5531L 1000Mbit/s 1310nm Multi-mode,Single-mode Black network media converter

GFC-5531L - MM / SM, -5.0 - 0.0 dBm Tx PWR, -24.0 dBm Rx Sensitivity, SC/SC, 1310 ηm, 550m / 30 Km Canary’s Gigabit GFC-5537A/B multi-mode to Single-Fiber, Bi-Directional single-mode converters deliver Gigabit data throughout the enterprise via a single strand of single-mode fiber cable. GFC-5537A/B converters are designed to free-up fiber capacity by using dual wavelengths transmitted bi-directionally over a single strand of a duplex fiber pair. They are ideal for data intensive backbones in the enterprise or across the campus where extra fiber capacity is lacking but additional access is needed for redundancy, to add user channels, or for alternate protocols. Canary’s Single-Fiber, Bi-Directional converters are functionally identical to standard units with the exception that units designated with an A (GFC-5537A & GFC-3137A) transmit at 1550 ηm and receive on 1310 ηm, while B units (GFC-5537B & GFC-3137B) transmit at 1310 ηm and receive on 1550 ηm. Single-Fiber converters must be connected as complementary A & B pairs. For proper

function, one A unit and one B unit must always be purchased, installed, and connected. Similarly, standalone A & B units can be connected to complementary A & B modules used in the CCN- 2000/0400 or CCM-1600 Chassis families. Canary Single-Fiber converters are available with 20 kilometer or 40 kilometer transmission ranges.

Standard GFC multi-mode ports provide minimum transmission distances of 220+ meters over 62.5/125 μm fiber or 500+ meters over 50.0/125 μm fiber.

- Simple plug and go installation
- Transparent to Flow-Control commands such as PAUSE
- Dual power jacks for connecting optional, redundant power supply
- Optional: UK, Continental European power
- Auto-sensing, 100 / 240 VAC Power Supply
- Diagnostic LEDs
