Lens system
| Closest focusing distance |
0.35 m |
| Number of diaphragm blades |
7 |
| Diagonal angle of view (max) |
78 ° |
| Image stabilizer |
Y |
| Minimum aperture number |
22 |
| Focal length (35mm film equivalent) |
27 - 88 mm |
| Focal length range (f-f) |
17 - 55 mm |
Performance
| AF actuator |
USM |
| Auto focus |
Y |
Weight & dimensions
| Diameter |
83.5 mm |
| Filter size |
77 mm |

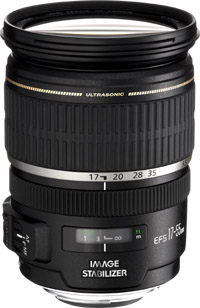

EF-S 17-55mm f2.8 IS USM
With a constant f/2.8 aperture throughout the zoom range and a 3-stop Image Stabilizer, the EF-S 17-55mm f/2.8 IS USM provides outstanding performance and framing flexibility in low light conditions.
- Wide angle zoom for EF-S mount bodies
- f/2.8 aperture throughout zoom range
- 3-stop Image Stabilizer
- Fast, quiet auto focus
- Super Spectra coating
- Circular aperture for pleasing background blur
- Passes distance information to E-TTL II
- Optional lens hood.
High performance wide angle zoom
With an effective focal length range of approximately 27-88mm (35 mm equivalent), the EF-S 17-55mm f/2.8 IS USM is a powerful lens that delivers remarkable image quality. The wide angle zoom allows you to capture more of every scene and add a new sense of space and perspective to your photography.
Fixed aperture
The large f/2.8 aperture provides excellent results in low light conditions. The aperture remains constant through the full focal length range, allowing you to zoom from approximately 27-88mm (35 mm equivalent) without slowing shutter speed.
Pleasing background blur
A circular aperture provides a pleasing background blur when shooting with a wide aperture; ideal for creating a sense of depth and isolating your subject from the background.
Image Stabilizer
The EF-S 17-55mm f/2.8 IS USM features Canon’s 3-stop Image Stabilizer (IS). Ideal for handheld work, IS allows use of shutter speeds up to 3 stops slower with no perceptible increase in image blur. IS helps with low light conditions, fast paced scenes and shooting from moving vehicles.
Fast, quiet auto focus
A ring USM (Ultrasonic motor) uses ultrasonic frequency vibrations to drive responsive, near-silent high speed auto focus. Good holding torque stops the focusing lens group with precision without overshoot. Full time manual focus override is available without having to switch out of AF.
Super Spectra coatings
Optimised Super Spectra lens coatings and lens element shaping suppress flare and ghosting - more prone to occur with digital cameras due to reflection off the image sensor. Coatings also help achieve true colour balance and increase contrast for vivid hi-fidelity images.
Passes distance information to E-TTL II
The lens passes distance information back to the camera's E-TTL II flash system to ensure optimal flash metering in any shooting situation.
