Paper handling
| Standard media sizes |
Roll Paper (width): ISO: A3, A2, A2+, A1; JIS: BS, B4; ARCH: 24"; Others: 10", 14", 16", 17", Banner (300mm)\nCut Sheet: ISO: A4, A3, A3+, A2, A2+, A1, B4, B3, B2; DIN: C4, C3, C2; JIS: B4, B3, B2; ANSI: 8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34"; ARCH: 9 x 12", 12 x 18", 18 x 24", 24 x 36"; Photo: 20 x 24", 18 x 22", 14 x 17", 12 x 16", 10 x 12", 10 x 15", 16 x 20"; Poster: 20 x 30", 300 x 900mm; Others: 13 x 22" |
| Maximum media width |
609.6mm (24") |
| Media thickness |
0.07 - 0.08 mm |
| Roll paper |
Y |
| Cut sheets |
Y |
Media formats
| JIS B-series sizes (B0...B9) |
B2, B3, B4 |
| ISO B-series sizes (B0...B9) |
B2, B3, B4 |
| Maximum roll length |
18 m |
Media types
| Photo paper |
Y |
| Coated paper |
Y |
| Proofing paper |
Y |
Sound emission
| Standby acoustic emission |
35 dB |
| Noise level |
47 dB |
Print quality
| Minimum line width |
0.02 mm |
Networking
| Supported network protocols |
PX/SPX, SNMP, HTTP, TCP/IP, AppleTalk |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab |
| Networking features |
10base-T, 100base-TX, 1000base-T |
| Cabling technology |
Ethernet |
Power
| Power supply type |
100 - 240 |
Other features
| Line accuracy |
± 0.1% |
| Control panel |
LCD: 160 x 128 dots, Key x 13, LED x 5 |
Performance
| Maximum internal memory |
80 GB |

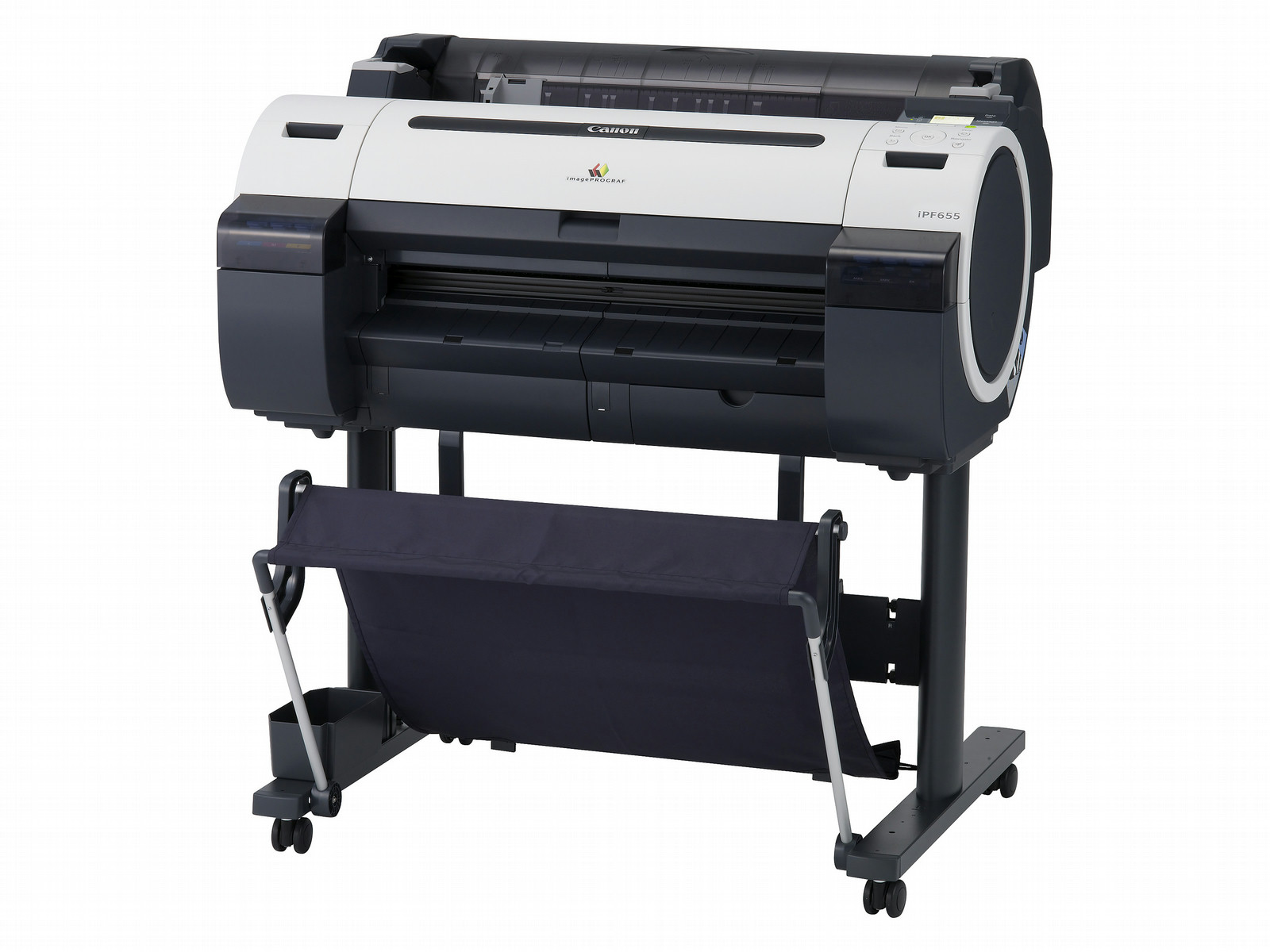

imagePROGRAF iPF655, 2,400x1,200dpi
Features
- Space saving, compact design
- Manage costs & track ROI with accounting software
- User friendly front access
- High productivity incl. “Hot swap” ink tanks & Media Mismatch
- Exceptional quality & accuracy
- HP GL/2 & HP-RTL compatible
- 80Gb HDD for easy print management
Designed for usability
The iPF655 is designed to fit into any CAD/GIS environment. A compact, slim design and all front operation means you can install the printer anywhere – even flush against a wall to save valuable office space.
A large LCD control panel featuring graphic animations ensures it’s quick and easy to get to grips with. Prints are automatically stacked in the high capacity basket to prevent damage and there’s even a handy print timer to track how long a job will take to complete.
For environments with multiple users there is a 80Gb hard disk to store print jobs and to make processing large vector files even easier.
High productivity
Expect exceptional productivity with draft A1 prints in just 30 seconds. Canon’s L-COA image processing technology and Gigabit Ethernet ensure stunning high-speed reproductions on everything from architectural plans to geographic information.
Productivity is maintained in networked environments thanks to the Media Mismatch function. This works through the hard disk drive. When a job is sent to print with a different media to that which is loaded, the user is informed via the operation panel and given the option to cancel it, print it anyway or change the media. In the meantime, the iPF655 continues with other jobs in the queue.
Economical and efficient
A built in accounting function allows accurate tracking of the cost per print and the overall cost of your printer and enables you to view the data through the printer driver, or export it to a CSV file for use in your own files or systems. An Economy mode can be selected which uses less ink and Canon’s eMaintenance software automatically detects and manages mechanical problems and low ink levels, linking directly to a Canon service centre for maximum uptime.
Exceptional quality & accuracy
Canon’s 5-colour dye-and-pigment reactive ink system produces vivid colours and the sharpest, thinnest lines and the new magenta ink makes the red gamut even better. With a range accuracy of +/- 0.1% as well as a minimum line width of 0.02mm, precision is guaranteed. Images are rendered at 2,400 x 1,200 dpi for maximum impact, thanks to super-fine print heads using 15,360 nozzles.
Built for demanding workflows
The iPF655 is HP-GL/2 and HP-RTL compatible, including palette and pen settings. As well as an HDI driver for AutoCAD and for Microsoft Office users, there is a plug-in to print in Word, Excel and PowerPoint directly from the application.
