Media formats
| JIS B-series sizes (B0...B9) |
B2, B3, B0, B1 |
| ISO C-series sizes (C0...C9) |
C0, C1, C2, C3, C4 |
| ANSI paper sizes |
8.5 x 11", 8.5 x 14", 11 x 17", 13 x 19", 17 x 22", 22 x 34", 28 ｘ 40", 34 ｘ 44" |
| Architectural sizes |
9 x 12", 12 x 18", 18 x 24", 24 x 36", 26 ｘ 38", 27 x 39", 30 x 42", 36 x 48" |
| Maximum roll length |
18 m |
Paper handling
| Roll external diameter |
150 mm |
| Maximum media width |
Roll paper: 254 - 1118 mm; Cut sheet: 203 - 1118 mm |
| Media thickness |
0.07 - 0.8 mm |
| Roll paper |
Y |
| Cut sheets |
Y |
| Roll top margin |
20 mm |
Print quality
| Drivers included |
Y |
| Printing colours |
Black, Cyan, Magenta, Pigment matte black, Yellow |
Sound emission
| Standby acoustic emission |
35 dB |
| Noise level |
52 dB |
Printing
| Print speed (best quality) |
3.38 |
| Print speed (normal quality) |
2.29 |
Ports & interfaces
| Interface |
USB 2.0 Hi-Speed, 10/100Base-T/TX |
Performance
| Internal memory |
32768 MB |
| Hard drive capacity |
160 GB |
Networking
| Network ready |
Y |
| Cabling technology |
10/100Base-T/TX |
| Supported network protocols |
IPX/SPX Netware 4.2 (J), 5.1 (J), 6.0 (J)） SNMP (Canon-MIB), HTTP, TCP/IP, AppleTalk |
| Networking features |
Ethernet |
Print technology
| Print head |
PF-03 |
| Print cartridge volume (metric) |
330ml; 700ml |
Power
| Power consumption (off) |
1 W |

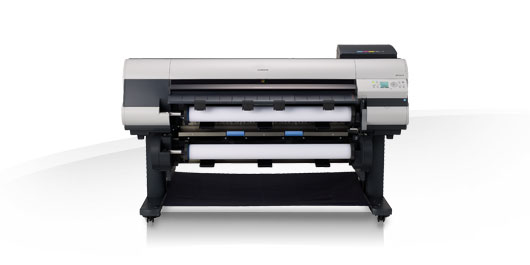

iPF825, 5-Color 44-inch Dual Roll, 2400 x 1200dpi max., 160GB HDD, 189kg
For the most demanding CAD & GIS work turn to the iPF825. This 44” large format printer delivers exceptional quality, versatility and breathtaking speeds.
Features
- Dual Roll for maximum productivity
- “Hot Swap” ink tanks – change whilst printing
- Blistering speeds
- Economy printing
- 5 colour reactive inks
- Sharp, thin lines for precise detail
- Built-in 160Gb HDD
- Enhanced HP-GL/2 support
- HP-RTL and HDI Driver
- Manage costs and track ROI with accounting software
Further Information
Count on blistering productivity with the iPF825. Designed for CAD & GIS applications in both print for pay and large corporate environments, this 44” printer delivers exceptional line reproduction, vivid colours, high image consistency and features “hot swap” high capacity ink tanks. Plus, the dual roll enables you to print for longer on different types and sizes of media.
Outstanding quality and accuracy
Canon’s 5-clour dye-and-pigment reactive pigment ink system produces vivid colours and the sharpest, thinnest lines, and with a range accuracy of +/- 0.1% as well as a minimum line width of 0.02mm, precision is guaranteed - images rendered at 2,400 x 1200 dpi for maximum impact, thanks to super-fine print heads using 15,360 nozzles.
High productivity
Exceptional image quality is accompanied by breathtaking productivity, with draft A0 prints in 45 seconds and A1 in just 24 seconds. High capacity 330ml and 700ml “hot swap” ink tanks are used, which can be replaced during production for non-stop productivity, as well as borderless printing to save you time on finishing. The device also comes equipped with a dual roll unit, which enables you to easily print long runs of different types and sizes of media.
Economical and efficient
A built in accounting function allows accurate tracking of the cost per print and the overall cost of your printer and enables you to view the data through the printer driver, or export it to a CSV file for use in your own files or systems. To keep costs low, an Economy mode can be selected which uses less ink, ideal when printing draft documents.
For demanding CAD workflows
The iPF825 is designed to integrate seamlessly and work perfectly with the most demanding CAD workflows. Large files are processed efficiently with enhanced HP-GL/2 support. HP-RTL format is also supported and an HDI driver for Windows is included.
Easy to use with built in 160Gb HDD
A built-in 160GB hard disk drive enables mailboxes to be created when using the device across multiple users, for example in busy corporate environments. Ease-of-use is furthered thanks to a large, graphical user interface, making operation simple.
