Video
| Analog signal format system |
NTSC, SECAM |
Projector
| Screen size compatibility |
21 - 300 " |
| Projector brightness |
1500 ANSI lumens |
| Horizontal resolution |
540 lines |
| Keystone correction, vertical |
±30 ° |
| Digital gamma correction |
Y |
| Projection technology |
LCD |
| Projector native resolution |
XGA (1024x768) |
| Uniformity |
85% |
Performance
| Dot clock scanning frequency |
108 MHz |
| Noise level |
28 dB |
| Vertical scan range |
50 - 120 Hz |
Ports & interfaces
| Composite video in |
1 |
| Progressive scan output |
Y |
| Headphone outputs |
1 |
| Audio (L,R) out |
1 |
| VGA (D-Sub) ports quantity |
3 |
Other features
| Resolution |
786432 pixels |
| Lens shift |
9:1 |
| Lens focal range |
F1.7 - F2.0 |
Lens system
| Focus |
Manual |
| Digital zoom |
4 x |
| Focal length range (f-f) |
21.6 - 25.9 mm |
Lamps
| Service life of lamp |
4000 h |
| Lamp type |
NSH |
| Bulb power |
130 W |
Additionally
| Display scan frequency (horizontal) |
15 - 100 kHz |
| Objective projection distance |
0.73 - 10.9 m |
| S-Video in |
1 |
| Wireless technologies |
Wired |

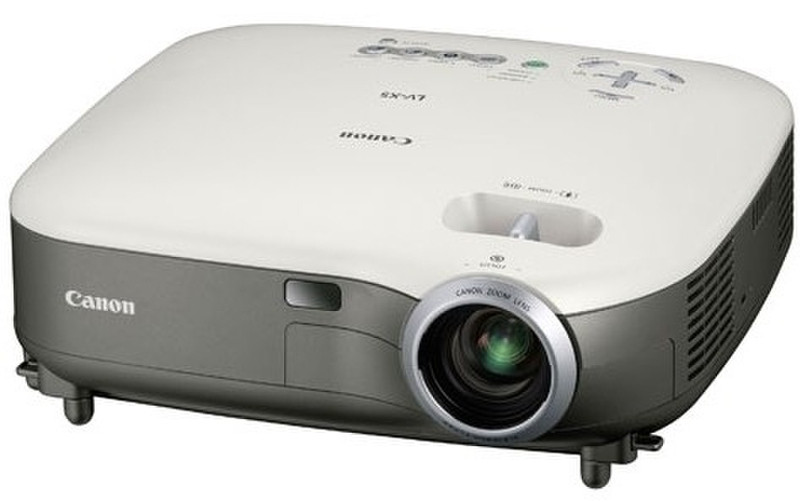

LV-X5 Multimedia Projector
Gentle on young eyes, the affordable LV-X5 is perfect for the modern classroom, with comfortable viewing, near-silent operation, fast start-up / cool-down time and up to 4000 hour lamp life.
XGA resolution
The LV-X5 projects images at XGA resolution (1024 x 768 pixels) for clear, legible presentations with no loss of detail. Resolution extends to UXGA (1600 x 1200) using high-quality compression.
Comfortable brightness
The LV-X5 delivers a controlled 1500 lumens output. This gives sufficient brightness without risking the eyes of children or teachers passing in front of the beam. A DC lamp and progressive scan technology reduce eyestrain by keeping images flicker-free.
Vivid and smooth images
With 300:1 contrast ratio, images are super crisp with brighter whites, darker blacks and richer colours.
Seen but not heard
Quiet Mode's near-silent 28dBA operation suppresses fan hum, keeping classroom attention fixed firmly on your lesson.
Zoom flexibility
The projector's wide-angle 1.2x zoom lens lets you project large images from short distances - great when positioning the projector close to the front of the room.
Keystone correction
Canon's Automatic Vertical Keystone Correction compensates for picture distortion that occurs when the projector is not perpendicular to the screen. The LV-X5 automatically detects any tilt angle and compensates within a maximum of ±30 degrees.
Project onto any background
Wall Colour Correction preserves the natural colour of images when projecting onto a classroom chalkboard or coloured wall.
Economical
Operating in Quiet Mode minimises running costs and extends lamp life to 4000 hours. Power Saving shuts down the projector if no input signal is detected for five minutes.
Fast start-up and shutdown
With 9 second start-up, the LV-X5 is ready for action as soon as the lesson begins. Cool down takes just 30 seconds.
External monitor connection
The LV-X5's RGB Output connection allows you to connect an external monitor, so you never have to turn your back on the class.
Portable
The portable LV-X5 weighs little more than a standard laptop PC. Its compact form fits into a soft carry case for easy movement between classrooms or lecture halls.
Features:
- XGA resolution.
- Gentle yet bright 1500 lumens.
- 300:1 contrast ratio.
- 28dBA Quiet Mode.
- Wide 1.2x zoom lens.
- Keystone correction.
- Wall Colour Correction.
- Up to 4000 hours lamp life.
- 9 second start-up, 30 second cool down.
- RGB output.
- Portable and compact.
