Paper handling
| Auto Document Feeder (ADF) media weight |
27 - 209 g/m² |
| Maximum scan width |
216 mm |
| Maximum ISO A-series paper size |
A4 |
| Media thickness (min) |
0.04 mm |
| Scanning media types supported |
Business Card, Plastic Card, Post Card(JPN) |
| Maximum scan length |
356 mm |
Input capacity
| Auto document feeder (ADF) input capacity |
60 sheets |
Ports & interfaces
| Standard interfaces |
Ethernet, USB 2.0 |
Performance
| Daily duty cycle (max) |
6000 pages |
| Scan to |
E-mail, FTP, Fax, USB |
| Sensor type |
CMOS CIS |
| Scan file formats |
PDF, PNG, TIFF |
| Light source |
LED |
Scanning
| ADF scan speed (b/w, A4) |
45 ppm |
| Optical scanning resolution |
600 x 600 DPI |
Power
| Power consumption (off) |
0.5 W |
| Power supply type |
AC |
Additionally
| Scan type |
ADF scanner |
| ADF scan speed (colour, A4) |
45 ppm |
| Colour scanning |
Y |
USB 2.0, 10BaseT/100BaseT/1000BaseT, 36W, LED, 24-bit, Colour, Greyscale, Black and White, 600 dpi, 25.654 cm (10.1 ") WSVGA TFT

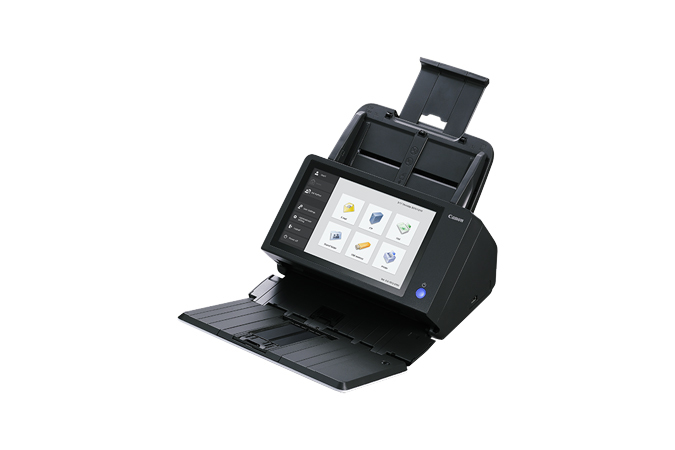

image FORMULA SCANFRONT 400 NETWORKED DOCUMENT SCANNER
Distribute business information across a highly secure network
with Canon’s imageFORMULA ScanFront 400 networked document
scanner. With a user-friendly, touch-screen interface and intuitive
features, paper documents can be captured, converted, and shared
efficiently for improved collaboration and productivity.
WIDE RANGE OF USES
The ScanFront 400 scanner is ideal for capturing document
information in distributed environments. It helps improve
collaboration by allowing users in central and field locations
to capture and share information seamlessly and securely.
Manufacturing, financial services, banking, legal services,
insurance, healthcare, and more can benefit from the efficiency
that comes with easy distribution of documents within their
business processes.
EASY-TO-USE SCANNING
The ScanFront 400 scanner’s high-definition touch-screen
enables users to preview their digitized documents as the scan
occurs to ensure the information is captured accurately. The
touch-screen interface also lets users select from a wide range
of scan destinations and can help streamline their daily tasks by
displaying preconfigured job buttons. This can help eliminate
the time spent on repeatedly choosing settings for each scan
session for frequently used scan tasks.
DISTRIBUTION OF BUSINESS INFORMATION
At up to 45 ppm, the ScanFront 400 scanner can scan both sides
of an item in a single pass and is capable of processing up to 6,000
documents per day for extensive batch scanning. Additionally,
the scanner can handle varied document types, such as thin or
thick documents, plastic cards, long or oversized documents, and
even passports using an optional carrier sheet to enhance daily
performance and adaptability. Users can send documents to e-mail,
a shared folder, fax, USB, FTP server, or printer, individually or
simultaneously, to boost productivity and efficiency. Users can
also create private address books to manage recipient information
or use shared LDAP options to maintain contact information
effectively for future scan tasks.
HIGHLY SECURE AND MANAGEABLE
With the included ScanFront Administrator tool, IT managers
can conveniently administer up to 1,000 ScanFront devices
simultaneously through centralized management capabilities.
By using this tool, IT managers can view status, update firmware,
back-up and restore configurations, and more. These operations
help enhance readiness on all ScanFront scanner devices connected
to the network, thus establishing devices uniformly and ensuring
the scanners are all operating. The ScanFront 400 scanner supports
LDAP over SSL (LDAPS) to help secure communications between
the device and LDAP servers and also supports log-in device access.
ENVIRONMENT IN MIND
The ScanFront 400 scanner meets ENERGY STAR guidelines for
energy efficiency and complies with both the EU RoHS and WEEE
directives for the reduction of hazardous substances and waste
products.
