Soundbar speaker
| Woofer diameter (imperial) |
4 " |
| Tweeter diameter |
1 " |
| Mid-range driver diameter (imperial) |
2 " |
| Number of mid-range drivers |
2 |
| Number of tweeter drivers |
2 |
| Soundbar speaker RMS power |
200 W |
| Crossover frequency |
3000 Hz |
| Number of woofer drivers |
4 |
| Mid-range driver diameter |
50 mm |
| Woofer diameter |
100 mm |
| Tweeter diameter |
19 mm |
Technical details
| Docking connector type |
Not supported |
| Handheld remote control |
Y |
| Frequency range |
35 - 23000 Hz |
| Wall mountable |
N |
| Apple docking compatibility |
Not supported |
Networking
| Bluetooth version |
3.0 |
| Bluetooth |
Y |
Ports & interfaces
| Digital audio optical in |
1 |
| Digital audio coaxial in |
1 |
| DC-in jack |
Y |
Subwoofer
| Bass reflex |
Y |
| Subwoofer location |
Built-in |
| Subwoofer included |
Y |
Additionally
| Wireless technologies |
Wired & Wireless |

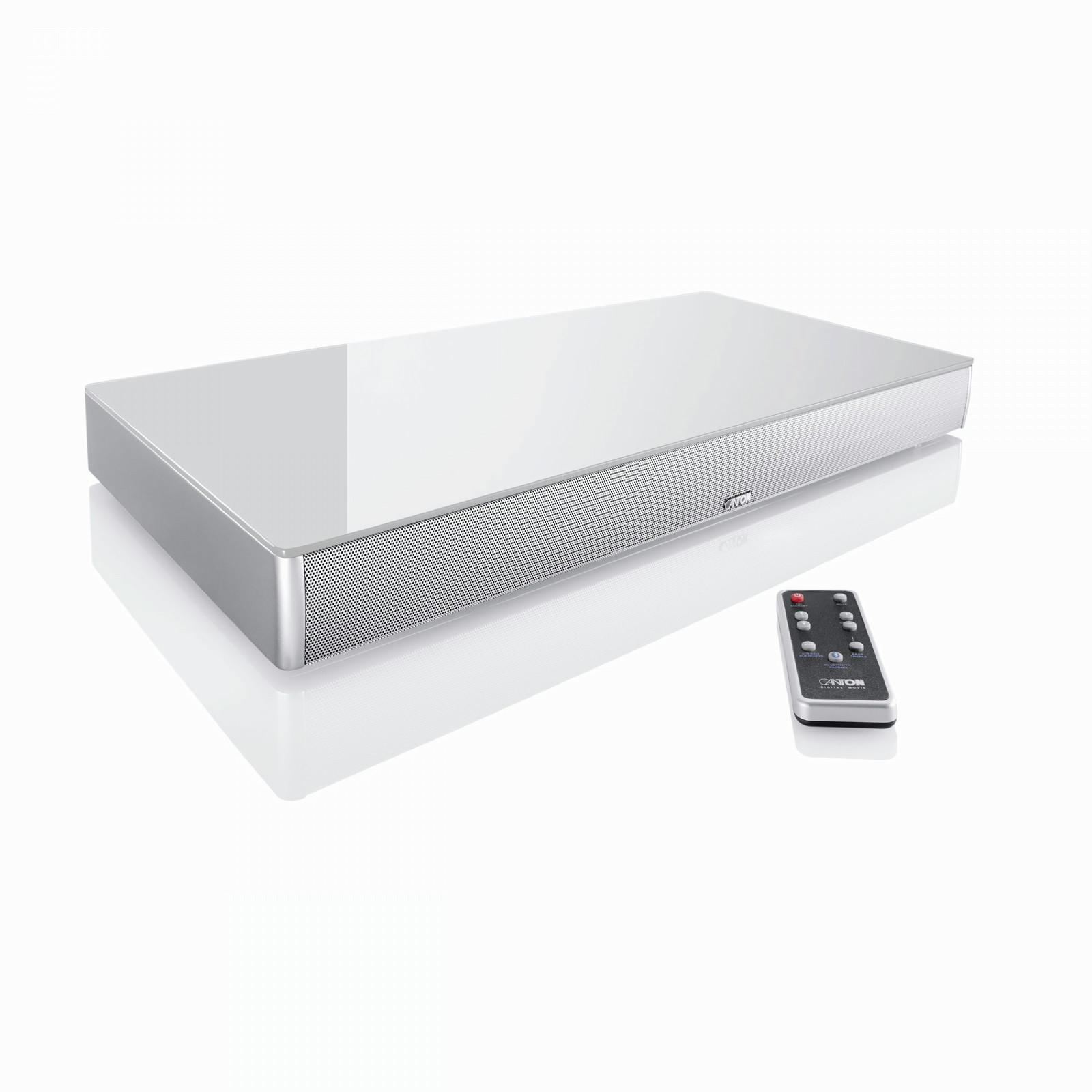

DM 75 2.1 Virtual Surround System 200W
The DM front surround systems are perfect for positioning under flat screen televisions. With a 200 watt system output, virtual surround technology and high quality loudspeaker fittings they are suitable for home cinema and music in equal measure. Simple to install, they only need a signal cable to connect to the flat screen device.
High quality fittings.
The solid HDF cabinet houses a modern, 200 watt digital amplifier with integrated 2-way loudspeaker system and down-fire subwoofer. This gives the DM system optimum speech intelligibility, impressive spatial presence and powerful bass tones.
Simple operation.
The DM system can be controlled with its own remote control or that of your television. All remote control functions of the DM system can be learned in just a few steps on the TV remote control unit. Two devices - one remote control.
Bluetooth® loudspeaker.
Thanks to the Bluetooth® interface and easy-pairing function, the DM system also masters the world of smart phones and tablet PCs. As a high quality Bluetooth® loudspeaker it also ensures loss-free transmission using apt-X® technology.
Glass surface.
Inspired by the world of exclusive furniture and fitted with an elegant glass surface, the new DM systems have an elegant, contemporary look and will form an eye-catching feature in any living room.
Connection options.
Alongside the optical digital input that makes it easy to connect with the flat screen television, the DM system has a coaxial digital input and an analogue cinch input. If required an external subwoofer can be operated using the Sub-Out output.
Functions at a glance.
- Voice Function – Better speech intellegibility in stereo & surround
- Hotel Mode – Setting maximum volume (hotels/children)
- ECO Mode – Optional energy saving mode (ON/OFF)
- Bluetooth® Select – Automatically selects Bluetooth® Input
- IR-Learn Function – Controlled with either TV or system remote control
- IR-Delete Function – simple to delete unwanted learn functions
- Input Direct Option – ideal for system remote control functions
- Lip-Sync – for precise speech/image synchronisation
- Equalizer – Three presets for adjustment to the location
- Easy-Pairing – Simple connection to source device
- ON/OFF – Automatic on and off switch
