Display
| Display diagonal |
19 " |
| Viewable size, horizontal |
376.3 mm |
| Viewable size, vertical |
301 mm |
| Contrast ratio (typical) |
800:1 |
| Display resolution |
1280 x 1024 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Display brightness |
550 cd/m² |
| Display technology |
IPS |
| 3D |
N |
| Display |
LCD |
Ergonomics
| Stand-by LED |
Y |
| VESA mounting |
Y |
| Plug and Play |
Y |
| Power LED |
Y |
| LED indicators |
Y |
Ports & interfaces
| AC (power) in |
Y |
| DVI port |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Weight & dimensions
| Weight with stand |
8800 g |
| Width (with stand) |
443 mm |
| Width |
443 mm |
| Depth (with stand) |
237 mm |
| Height (with stand) |
528 mm |
Power
| Power consumption (typical) |
80 W |
| Power consumption (off) |
10 W |
Multimedia
| Megapixel |
1.3 MP |
| TV tuner integrated |
N |
| Built-in camera |
Y |
Certificates
| Certification |
UL(ANSI/AAMI ES60601-1:2005)\nCUL(CAN/CSA C22.2 No, 60601-1: 08, FCC-B\nCE ( IEC/EN 60601-1: 3rd; IEC/EN 60601-1-2) |
Additionally
| Display number of colors |
16.78 million colours |
| Colour of product |
Grey, White |
| Display diagonal |
48.3 cm |
| S-Video in |
1 |
| Ethernet LAN connection |
N |
| On/Off switch |
Y |
| Energy efficiency compliance |
Unspecified |

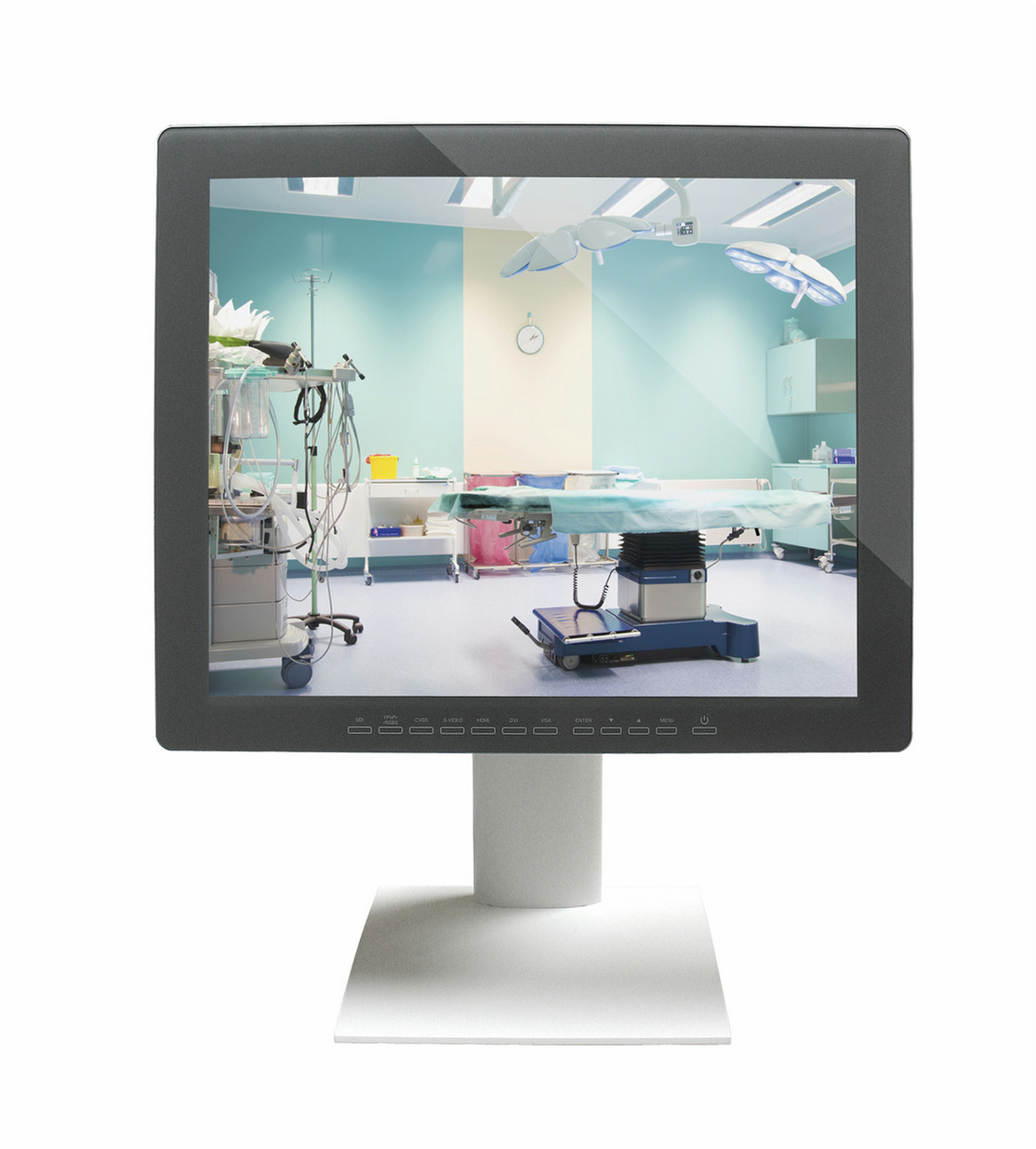

19” (48.3 cm) IPS TFT, 1280 × 1024, 550 cd/m², 800:1, 178°/178°, VGA , HDMI, DVI, S-Video, 1.3 Megapixel
- True Flat panel design with full IP65 glass front and IPX2 rear cover
- Glass front with touch keys for Direct Signal Input (DSI) selection and operation by latex gloves
- Plain glass front for easy cleaning and disinfection
- High-intensity, high-contrast medical LCD with IPS Panel for brilliant colour presentation
- Picture-in-Picture (PiP) and Picture-on-Picture (PoP)
- Viewing angle – wide range of 178° in both horizontal and vertical directions
- Brightness stabilization
- DICOM® Preset
- Multiple analog & digital I/O connectors
