Power
| Input operation voltage (max) |
144 V |
| Input operation voltage (min) |
60 V |
| Power supply input frequency |
50/60 Hz |
| Output power capacity |
3000 VA |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
120 V |
| Output power |
2400 W |
Ports & interfaces
| Power plug |
NEMA L5-30P |
| AC outlets quantity |
4 |
Battery
| Typical backup time at half load |
18 min |
| Typical backup time at full load |
8 min |
Operational conditions
| Operating altitude |
0 - 2000 m |
3000VA, 2400W, 60-144V, 50/60Hz, 2x Nema 5-15R, 2x Nema 5-20R, Black

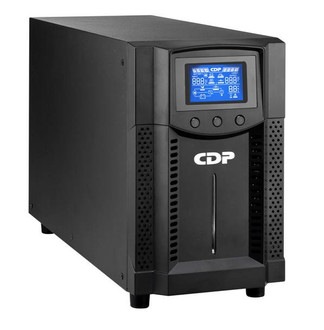

The UPO series On-line UPS is an advanced true double conversion On-line Topology, the UPO Isolated gate Bipolar Transistors (IGBT) for true isolation from AC input. Ideal for Data Centers in network and Industrial applications. Features models with scalable battery packs for those critical business systems that require long run times. With the UPO wide in-put voltage range and near zero tolerance on frequency and voltage variance on the out-put makes the UPO perfect for the most demanding and delicate of applications. Units include dynamic automatic ByPass in the event of a UPS failure. Audible and visual alarms and PDU compatibility. UPO 2-3 Include HD 20 amp twist locks input plug and replaceable 20 amp nema 5-20 allowing for hard wire applciations.
- Double Converstion On-line Technology
- Zero transfer Time
- Pure Sine Wave Out Put
- > 5% THD
- Advanced Digital Control Technology
- Super Wide In-put Voltage Range
- 3:1 Crest Factor
- Isolated Out-Put Power Banks
- Dynamic By-Pass
- SNMP compatible
- RS232 Monitoring Software Included
- 6 foot IEC320 input cord
- Cold Start/Test and alarm silence
- Full status indicators load level/ Battery Level/ replace Battery/ Bypass / On-line
- Data Line Surge Suppressor
