Scanning
| Working distance |
500 mm |
| Pitch reading angle |
0 - 60 ° |
| Read rate (max) |
120 reads/s |
| Wavelength |
625 nm |
| Optical sensor resolution |
360960 pixels |
Ports & interfaces
| Interface |
USB + RS-232 |
| Wireless range |
100 m |
| Bluetooth version |
2.1 |
Power
| Battery voltage |
3.7 V |
| Input voltage |
5 V |
| Battery life |
5 h |
| Number of reads per charge |
20000 |
Weight & dimensions
| Base weight |
147.4 g |
| Base dimensions |
112.18 x 84.64 x 130.6 mm |
Performance
| Light levels (direct sunlight) |
0 - 100000 lx |
Additionally
| Battery performance |
2600 mAh |
| Scan type |
1D/2D |
| Wireless technologies |
Wireless |
625±5nm Red LED , 1/2 D mode, 752 x 480, 0 - 100000 lux

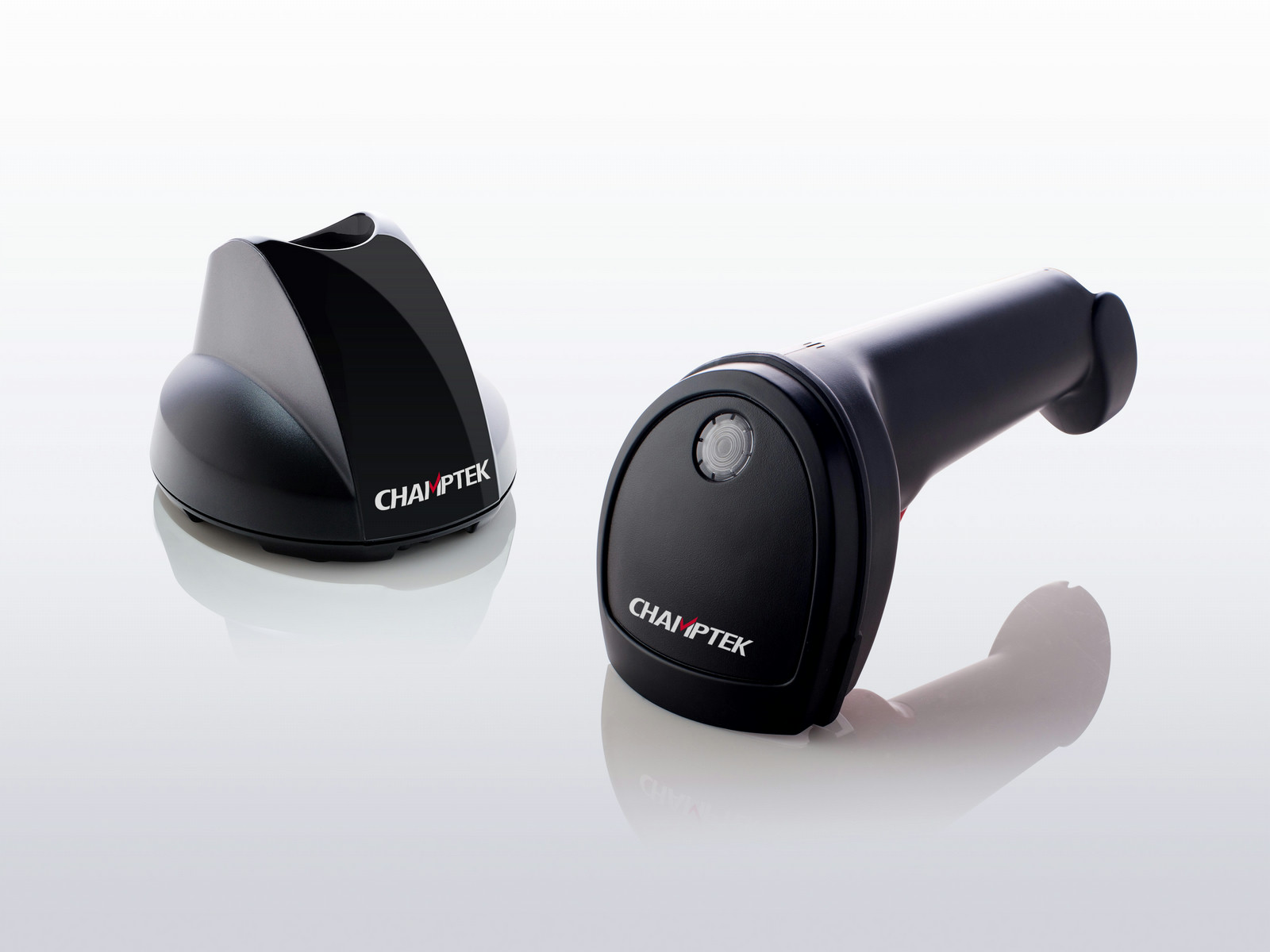

G610BT is a brand new gun-type wireless area imager bar code scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multi-interface cable options that makes it more easily to be operated by the customers to accommodate it to user environment.
IG610BT supports 1D and 2D barcode scanning with up to 500mm reading depth for the majority of 1D, 2D bar codes and GS1 DataBar™ codes. Its scan rate is up to 120 scans per second in linear emulation and 60 images per second in 2D mode. Support out of range or batch transmission mode, memory capacity stores up to 30,000 inputs of EAN13 barcodes.
The scanner and cradle with Class1 Bluetooth V2.1 EDR technology with transmission range up to 100m/ 328.08 ft. in line of open sight, supports both SPP and HID profiles can easily pair up with other Bluetooth V2.1 compatible mobile equipments or systems.
In short, IG610BT is a high performance wireless barcode scanner which provides customers with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail and logistic environment.
