Scanning
| Maximum scan width |
500 mm |
| Read rate (max) |
500 reads/s |
| Sensor type |
Linear |
| Wavelength |
632 nm |
Ports & interfaces
| Bluetooth version |
2.1 |
| Interface |
Bluetooth |
Power
| Battery life |
5 h |
| Battery voltage |
3.7 V |
| Input voltage |
5 V |
| Power consumption |
200 mA |
| Power source type |
Battery |
Weight & dimensions
| Base weight |
150 g |
| Base dimensions |
112.18 x 130.6 x 84.64 mm |
Additionally
| Battery performance |
2600 mAh |
| Scan type |
1D |
| Wireless technologies |
Wireless |
632nm Red LED, 500mm, Black, Li-ion 3.7V, 2600mAh

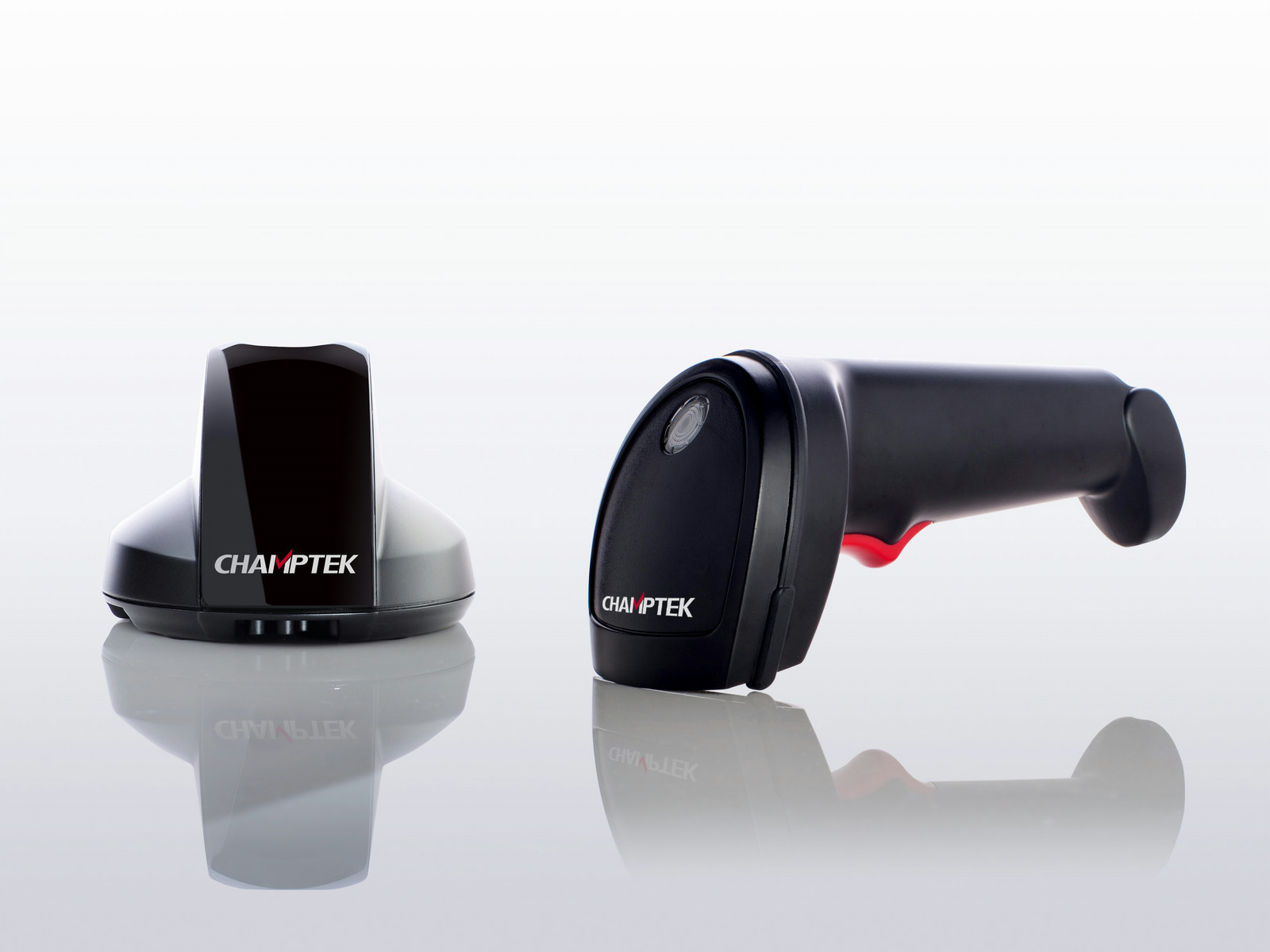

SG600BT is a general purpose wireless gun-type linear imager bar code scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multi-interface cable options that makes it more easily to be operated by the customers to accommodate it to user environment.
SG600BT has most modern design with its auto-shuttle-emulation alike smart detection, offers superior decoding performance on a reading speed up to 500 scans per second and up to 500mm reading depth for the majority of 1D bar codes and GS1 DataBar™ codes. For hand-free operation application, customers can easily configure by themselves to facilitate it to be hand-free reading. With its built-in automatically turn off reading and switch on reading, as it sense a bar code moving in front of it, can extend its lifespan.
The scanner and cradle with Class1 Bluetooth V2.1 EDR technology with transmission range up to 100m/ 328.08 ft. in line of open sight, supports both SPP and HID profiles can easily pair up with other Bluetooth V2.1 compatible mobile equipments or systems.
In short, SG600BT is a high performance wireless scanner which provides customers with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail and logistic environment.
