Other features
Operating temperature (T-T) |
32 - 131 °F |
Protocols
Supported network protocols |
TCP, UDP, IPv4, IPv6 |
Ports & interfaces
Host interface |
PCI-E |
Internal |
Y |
Additionally
Jumbo Frames support |
Y |
Transfer rate (Mbps) |
10000 Mbit/s |
Wireless technologies |
Wired |

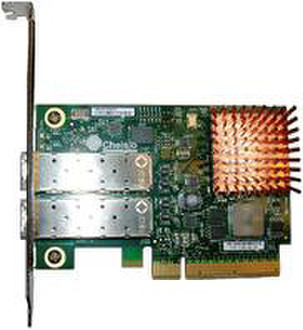

T420-SO-CR, 10 Gigabit Ethernet, PCI-E, LC Duplex
Chelsio’s T420-SO-CR is a memory free dual port 10 Gigabit Ethernet Unified Wire adapter with PCI Express 2.0 host bus interface, optimized for cloud computing, virtualization, storage, and other data center ap-plications.
The fourth-generation (T4) technology from Chelsio pro-vides the highest 10GbE perfor-mance available and dramatical-ly lowers host-system CPU com-munications overhead with on-board hardware that off-loads TCP/IP, iSCSI, and FCoE pro-cessing from its host system. T420-SO-CR frees up host CPU cycles for useful applications. The system achieves increased band-width, lower latency, and lower power.
<b>The Unified Wire Solution</b>
With the T420-SO-CR, Chelsio is enabling a unified wire for LAN, and SAN traffic. This unified wire was made possible by the high band-width and low latency of 10GbE combined with storage protocols oper-ating over TCP/IP (iSCSI, and FCoE respectively).
In parallel, operating systems and hypervisors have incorporated na-tive support for iSCSI and database applications are now supporting file- based storage protocols such as NFS as an alternative to SANs.
T420-SO-CR includes a full-fledged integrated Traffic Manager for robust flow control, traffic management and QoS.
Fibre Channel over Ethernet (FCoE) provides a transition path from leg-acy SANs to converged networks. Expanding its unified wire approach, Chelsio has added FCoE hardware support to the new T420-SO-CR adapter.
The adapter’s two ports and IEEE 802.3ad link aggregation/failover fea-tures are ideal for critical network applications that require redundancy and high-availability capabilities.
T420-SO-CR Ethernet-only networking reduces the data center’s cost in network adapters, cables, switches, rack space, power, equipment spares, management tools, planning, networking skills, and installation.
