Ports & interfaces
| Modem (RJ-11) ports |
2 |
| DC-in jack |
Y |
Technical details
| Frequency range |
0.108 - 0.862 GHz |
| Modulation |
QPSK, 8-QAM, 64-QAM, 32-QAM, 16-QAM, 128-QAM |
Protocols
| Supported protocols |
MGCP/NCS |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
55.2 Mbit/s |
2-Line VoIP Cable Modem with EMTA for International markets, Fast Ethernet, 2x RJ-11
<b>Cisco Model EPC2203 EuroDOCSIS 2.0 Cable Modem with Embedded MTA</b>

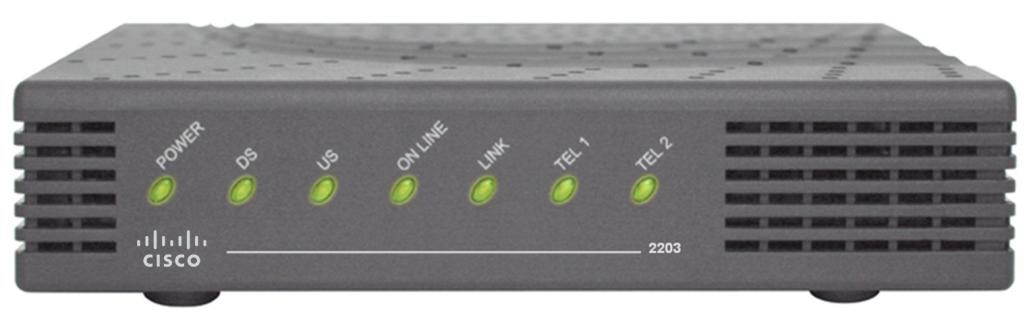

The Cisco® Model EPC2203 Cable Modem (EPC2203) is a high-speed cable modem
with an embedded media terminal adapter (EMTA). The EPC2203 features single line or
two RJ-11 telephone ports for Voice over Internet Protocol (VoIP) service along with a
10/100BASE-T Ethernet port and a USB 1.1 port for high-speed data connectivity.
The EPC2203 also features Dual Mode. This feature allows the service provider to deploy the EPC2203 in networks that use DOCSIS® 6 MHz downstream modulation.
The EPC2203 is designed to meet EuroPacketCable™ 1.0 and EuroDOCSIS™ 2.0 specifications and is backward compatible with EuroDOCSIS 1.1 and EuroDOCSIS 1.0
networks. The EPC2203 uses advanced line interface technology to provide multi-country
toll-quality telephone service using existing in-home wiring. The EPC2203 supports 10
REN total, 5 REN loading on each phone line.
Includes:
- EuroPacketCable 1.0 / EuroDOCSIS 2.0
- Standard housing (no battery backup capability)
- 230 VAC / 50 Hz, 12 VDC / 1 A wall-mount style linear-switching power supply for Europe
- Ethernet and USB cables
- CD-ROM containing user guide and USB drivers
