Cisco Gigabit Ethernet High-Speed WAN Interface Card interface cards/adapter

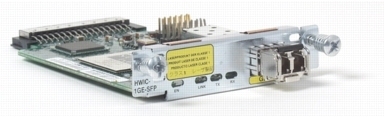

Gigabit Ethernet High-Speed WAN Interface Card OVERVIEW

The single-port Cisco Gigabit Ethernet HWIC provides Gigabit Ethernet optical and copper connectivity in a compact form factor for all Cisco 2800 and 3800 series integrated services routers, except the 2801.
As an updated and enhanced version of the current WIC for the Cisco 2600 and 3700 chassis, the HWIC offers greater bandwidth and higher port density than the current WIC. The HWIC supports both Power over Ethernet (PoE) and inline power based on Cisco Systems® technology, and is available in single-wide and double-wide form factors.
The Gigabit Ethernet HWIC enables branch offices to cost-effectively use high-speed uplinks in numerous environments (Figure 1). The enhanced performance of Gigabit Ethernet in Cisco 2800 and 3800 series routers allows customers to enable new applications and services, as well as provide greater capacity for existing inter-VLAN routing and bridging capabilities. Additionally, branch offices can now connect to metropolitan-area networks (MANs). Note: The HWIC provides Gigabit Ethernet connectivity but will not support line rate since the throughput is limited by the platforms.
For flexibility, the HWIC includes one Small Form-Factor Pluggable (SFP) slot to carry any Cisco copper or optical SFP (Table 1), allowing customers to use different SFPs for special distance, cost, existing infrastructure, and future expansion requirements.
Cisco IOS® Software provides enhanced capabilities such as quality of service (QoS), Multiprotocol Label Switching (MPLS), IP Security (IPSec), and Layer 3 VPNs.
