Storage
| Internal drive bays |
2 |
| Drive device, transfer rate |
3000 MB/s |
| Hard drive interface |
Serial ATA |
| Total storage capacity |
250 GB |
| Number of hard drives installed |
1 |
| Hot-swap |
N |
| Hard drive size |
3.5 " |
Processor
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Idle States |
Y |
| ECC supported by processor |
N |
| Tcase |
72.4 °C |
| Bus type |
FSB |
| Processor frequency |
3 GHz |
| Stepping |
E0 |
| Processor operating modes |
64-bit |
| Embedded options available |
Y |
| FSB Parity |
N |
| Number of Processing Die Transistors |
410 M |
| Processor front side bus |
1333 MHz |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Processor codename |
Wolfdale |
| Processor code |
SLB9J |
| Graphics & IMC lithography |
45 nm |
| Processor cache |
6 MB |
| Number of processors installed |
1 |
| Processor cores |
2 |
| Maximum number of SMP processors |
1 |
| Thermal Design Power (TDP) |
65 W |
| CPU multiplier (bus/core ratio) |
9 |
| Processor lithography |
45 nm |
| Processor package size |
37.5 mm |
Processor special features
| Intel Flex Memory Access |
N |
| Intel Enhanced Halt State |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel vPro Technology |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
33910 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
N |
Memory
| Maximum internal memory |
8 GB |
| Memory slots |
4 |
| Internal memory |
2 GB |
| Memory clock speed |
667 MHz |
| ECC |
Y |
| Internal memory type |
DDR2-SDRAM |
Certificates
| Safety |
UL 60950-1, NOM, SASO |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Operational conditions
| Operating temperature (T-T) |
50 - 95 °F |
Networking
| Networking features |
Gigabit Ethernet |
Expansion slots
| PCI Express x4 slots |
1 |
| PCI Express x8 slots |
1 |
Performance
| Pre-installed software |
Cisco Unified Communications Manager 7.1 |
Additionally
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Processing die size |
107 mm² |
MCS 7816-I4, 1U, Intel Core 2 Duo E8400 (6M Cache, 3.00 GHz, 1333 MHz FSB), 2 x 1GB RAM DDR2-667MHz ECC, 250GB HDD SATA 7200rpm 3.5'', Gigabit Ethernet, PCI-E, 4 x USB 2.0, 351W, 12.7kg, Cisco Unified Communications Manager 7.1

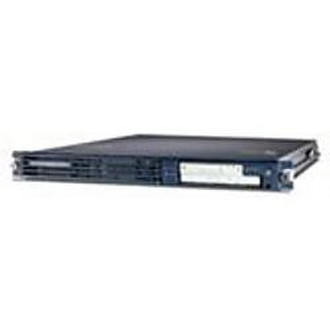

Cisco MCS 7816-I4 Unified Communications Manager Appliance
Cisco Unified Communications Solutions unify voice, video, data, and mobile applications on fixed and mobile networks enabling easy collaboration every time from any workspace.
The Cisco® MCS 7816-I4 Unified Communications Manager Appliance is an integral part of a complete entry-level architecture for a new generation of high-quality unified communications solutions that operate on enterprise data networks. This powerful platform delivers the high performance and availability that today's enterprise networks demand. The server appliance is preinstalled with an operating system and the Cisco Unified Communications Manager application. Cisco Unified Communications Manager is fully operational upon startup, requiring entry of just a few configuration variables such as IP address and domain.
