Data transmission
| MAC address table |
128000 entries |
| Switching capacity |
92 Gbit/s |
| Forwarding rate |
60 Mpps |
| Number of VLANs |
16384 |
Management features
| Management platform |
Cisco DCNM 4.0 |
| Quality of Service (QoS) support |
Y |
Performance
| Buffer size per port |
7.56 MB |
Networking
| Full duplex |
Y |
| Ethernet LAN data rates |
1000 Mbit/s |
Ports & interfaces
| SFP module slots quantity |
48 |
| Fiber ports quantity |
18 |
Certificates
| Safety |
UL/CSA/IEC/EN 60950-1, AS/NZS 60950 |
| Electromagnetic compatibility |
FCC Part 15 (CFR 47) (USA) Class A, ICES-003 (Canada) Class A, EN55022 (Europe) Class A, CISPR22 (International) Class A, AS/NZS CISPR22 (Australia and New Zealand) Class A, VCCI (Japan) Class A, KN22 (Korea) Class A, CNS13438 (Taiwan) Class A, CISPR24, EN55024, EN50082-1, EN61000-3-2, EN61000-3-3, EN61000-6-1, EN300 386 |
Security
| Access Control List (ACL) |
Y |
Operational conditions
| Operating temperature (T-T) |
32 - 104 °F |

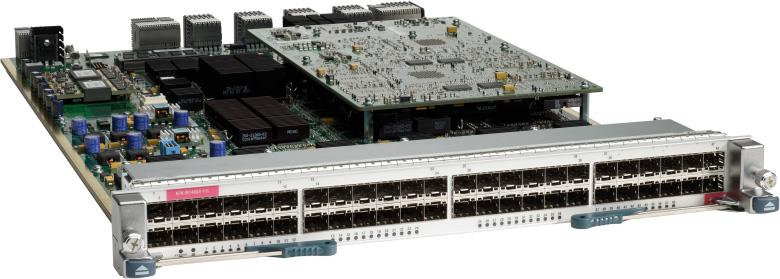

Nexus 7000 M1-Series 48-Port Gigabit Ethernet SFP Module w/XL, Spare
The Cisco Nexus® 7000 M1-Series 48-Port Gigabit Ethernet Modules with XL Option are highly scalable modules designed for performance-driven, mission-critical Ethernet networks. The modules use the M1-XL forwarding engine, providing a throughput of up to 60 million packets per second (Mpps) and a large Forwarding Information Base (FIB), making them excellent for deployment at an Internet exchange point (IXP), a service provider, or a large enterprise.
The Cisco Nexus 7000 Series Switches comprise a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks, with a fabric architecture that scales beyond 15 terabits per second (Tbps), and are designed to support high-density 40 and 100 Gigabit Ethernet deployments. Designed to meet the requirements of the most mission-critical network environments, these switches deliver continuous system operation and virtualized pervasive services. The Cisco Nexus 7000 Series is powered by the proven Cisco® NXOS operating system, with enhanced features to deliver real-time system upgrades with exceptional manageability and serviceability. Its innovative unified fabric design is purpose built to support consolidation of IP, storage, and interprocess communication (IPC) networks on a single Ethernet fabric.
