Processor
| Number of processors installed |
1 |
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
43098 |
| Processor code |
SLBLA |
| Processor cache type |
L2 |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| Processor operating modes |
64-bit |
| L2 cache |
1 MB |
| Stepping |
B0 |
| Processor cores |
2 |
| Processor frequency |
1.66 GHz |
| Maximum internal memory supported by processor |
4 GB |
| ECC supported by processor |
N |
| Bus type |
DMI |
Processor special features
| Intel Trusted Execution Technology |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel 64 |
Y |
| Number of Processing Die Transistors |
176 M |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Networking
| iSCSI support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
CIFS/SMB, AFP, NFS, FTP, FTPS, HTTP, HTTPS, Telnet, SSH, iSCSI, SMTP, SMSC, TCP/IP |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Power
| Power supply unit (PSU) capacity |
250 W |
Performance
| Management protocols |
SNMP v2/v3 |
| Number of users |
4096 user(s) |
Storage
| Supported file systems |
FAT32, NTFS |
| Number of storage drives installed |
6 |
| Total installed storage capacity |
6000 GB |
| Hot-swap drive bays |
Y |
| Storage drive capacity |
1000 GB |
Other features
| Fan |
2x 90mm |
| Networking features |
Gigabit Ethernet |
Additionally
| Internal RAM type |
DDR2 |
| Processing die size |
87 mm² |
| Internal RAM |
1 GB |
| Jumbo Frames support |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

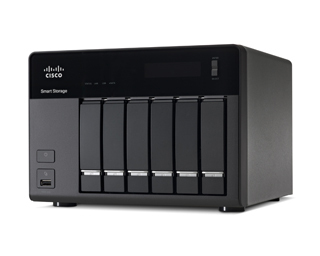

NSS326 6-bay, 6TB, Intel Atom D510 1.66GHz, 1GB DDR2, 512MB, Linux 2.6, 5.2 kg
Cisco NSS 326 Smart Storage centralizes and manages all your storage needs in a single, affordable, high-speed performance solution. This 6-bay desktop model can be purchased with up to 12 TB of hard drive space installed.
Additional features of the NSS 326 Smart Storage include:
- High performance: Class-leading performance helps reduce backup time while allowing multiple people to use the device simultaneously.
- Built-in and add-on applications: Extend capabilities beyond storage, and get more for your money. Running applications on Cisco Smart Storage helps ensure that they are available at all times, and can eliminate the need for additional devices on the network.
- Security and data encryption: On-disk data encryption protects critical business data stored on disk even if hard drives are stolen.
- Simplified configuration and management: Setup takes minutes and a straightforward, browser-based interface simplifies configuration.
- Flexibility: Choose from multiple backup modes and share files across Windows, Macintosh, and Linux platforms.
- Reliable, high-availability design: Safeguard data and reduce downtime with Redundant Array of Independent Disks (RAID) 0, 1, 5, and 6 configurations, and hot-swappable drives.
- Service and support: Protect your investment with Cisco Small Business Pro Service, which provides three-year, peace-of-mind coverage.
