Ethernet LAN features
Cabling technology |
10/100Base-T(X) |
Ethernet LAN interface type |
Fast Ethernet |
Ethernet LAN data rates |
10, 100 Mbit/s |
Networking
Routing protocols |
RIP-1, RIP-2 |
Software
Linux operating systems supported |
Y |
Management features
Universal Plug and Play (UPnP) |
Y |
Quality of Service (QoS) support |
Y |
Reset button |
Y |
Protocols
DMZ support |
Y |
DHCP client |
Y |
DHCP server |
Y |
Supported network protocols |
IPv4, IPv6 |
Wireless LAN features
Wi-Fi band |
Single-band (2.4 GHz) |
Top Wi-Fi standard |
IEEE 802.11n |
WLAN data transfer rate (max) |
75 Mbit/s |
Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
WAN connection
Ethernet WAN |
Y |
3G/4G USB modem compatibility |
Y |
DSL WAN |
Y |
SIM card slot |
N |
Antenna
Antenna type |
Internal |
Antenna gain level (max) |
3 dBi |
Antennas quantity |
2 |
Mobile networking
3G |
Y |
4G |
Y |
4G standard |
LTE |
Additionally
Ethernet LAN connection |
Y |
On/Off switch |
Y |
Ethernet LAN (RJ-45) ports quantity |
3 |
ADSL2+, WAN, 3x LAN 10/100 Mbps, SPI, IPsec, USB, CLI, VPN, 3G/4G/LTE

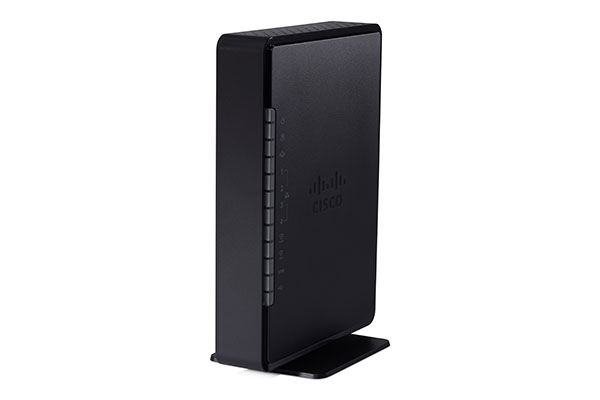

The Cisco® RV132W Wireless-N ADSL2+ VPN Router is easy to use, set up, and deploy. This flexible router offers great performance and is suited for small or home offices (SOHO) and smaller deployments.
This networking-in-a-box model offers a quick deployment process that only takes a few minutes to set up using a web-based user interface.
- VPN security
- Built-in three-port Fast Ethernet switch
- Asymetrical Digital Subscriber Line 2 plus (ADSL2+) connectivity
- Fast Ethernet WAN
- USB 3G/4G/LTE
- Limited lifetime warranty
- Industry-leading support
- Internal antennas
- Sleek new design
The RV132W can be used to connect to an ADSL2+ interface or a regular Ethernet WAN interface. The model supports the free Cisco Small Business FindIT Network Discovery Utility, which allows for automatic discovery and one-click software downloads.
