Management features
| Multicast support |
Y |
| Switch layer |
L2 |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100 Mbit/s |
| Switching capacity |
8.8 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Number of VLANs |
256 |
Other features
| Packet transfer speed |
6.55 mpps |
| Cabling technology |
10/100/1000 Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Networking features |
Gigabit Ethernet |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Rate limiting |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| 10G support |
N |
Security
| Static port security |
Y |
| MAC address filtering |
Y |
Performance
| Noise level |
40.2 dB |
| Packet buffer memory |
0.5 MB |
| Internal memory |
128 MB |
| Firmware upgradeable |
Y |
| Flash memory |
16 MB |
| Stackable |
Y |
Ports & interfaces
| SFP/SFP+ slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 1000BASE-TX, 100BASE-T, 10BASE-T |
| Combo SFP ports quantity |
2 |
Protocols
| Management protocols |
IGMPv1/2 |
| Supported network protocols |
IPv4/IPv6, HTTP, SNTP, TFTP, DNS, ICMP, BOOTP, Bonjour |
Design
| Ventilation fan(s) |
1 |
| Rack mounting |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Additionally
| Jumbo Frames support |
Y |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

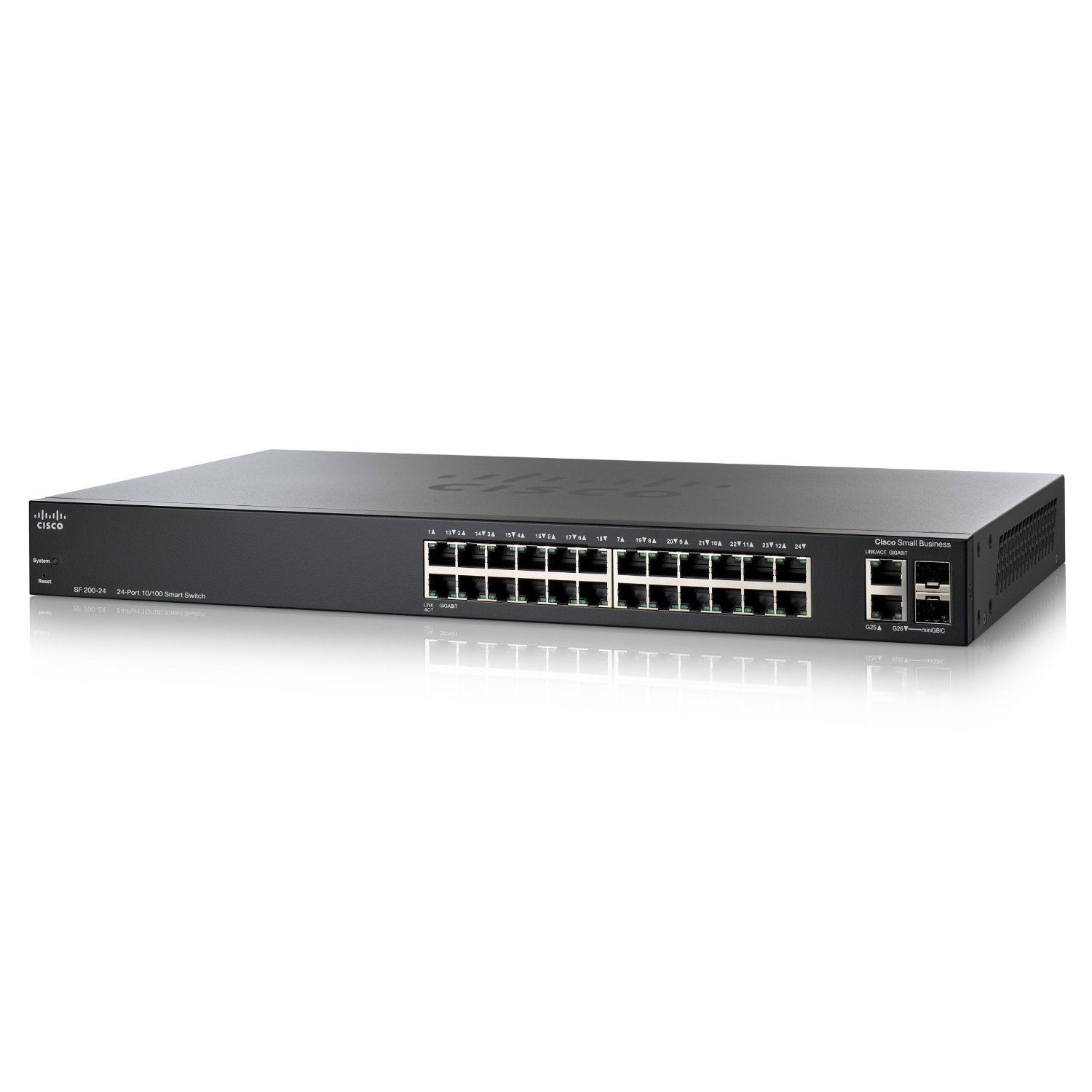

24 x 10/100 Ethernet, 2 x Combo mini-GBIC, PoE, 16MB/128MB, 8K MAC, VLAN, QoS, 220V/0.166A/22.2W, 3.45kg
Cisco 200 Series Smart Switches
Cisco Switches Outperform Competitors.
Miercom finds Cisco SG200 and SG300 Gigabit Switches superior to HP and D-Link.
The Right Features at the Right Price
Cisco Small Business 200 Series Smart Switches combine powerful network performance and reliability to build a basic business network. These entry-level managed switches deliver the essential network features you need, with the easy-to-use management you want at a great price.
Small Business 200 Series Smart Switches offer:
- Numerous features: Achieve a business-class network with important features like quality of service, Power over Ethernet, and IPv6 support.
- Simplification: Remove complexity from the setup process using the browser-based configuration interface of this device.
- Performance: Get your high-bandwidth data where it needs to go, quickly and without errors.
- Security: Keep the data on your network safe from unauthorized access.
- An eco-friendly solution: Use switches to optimize power usage for energy efficiency without compromising performance.
- Peace of mind: Rest assured that all Small Business 200 Series Smart Switches are protected by the Cisco Limited Lifetime Hardware Warranty.
Advanced Features
- Embedded QoS intelligence to prioritize delay-sensitive traffic;
- Integrated network security such as IEEE 802.1X port security to control access to your network;
- Native support for IPv6 alongside traditional IPv4.
Energy Efficient and Design
- Conserves energy by optimizing power use and lowers energy costs; ports power down automatically when a link is down;
- Embedded intelligence adjusts power usage based on cable length.
Easy Configuration and Management
- Includes intuitive, browser-based tools that simplify setup, management, and troubleshooting;
- Obtains IP address with Cisco FindIT;
- Provides automated security and QoS port configuration with Cisco.
Peace of Mind
- Tested to help ensure optimal uptime and performance and easy integration with other Cisco networking and communications products;
- Includes a limited lifetime warranty.
