Ports & interfaces
| Host interface |
CardBus |
| Internal |
Y |
| Interface |
Fiber |
| Fiber ports quantity |
1 |
Certificates
| Safety |
UL 60950, CSA 22.2-No.60950, EN60950, IEC 60950 CB Scheme, ACA TS001, AS/NZS 3260, EN60825\IEC60825 laser safety (SR, IR-Class 1) (VSR-Class 1M)1, 21CFR1040 -FDA |
| Electromagnetic compatibility |
FCC Part 15 (CFR 47), ICES 003, EN55022, CISPR 22, AS/NZ 3548, VCCI, EN55024, EN50082-1, EN61000-6-1, EN61000-3-2, EN61000-3-3 |
Protocols
| Supported network protocols |
HDLC, RFC 2615, PPP, RFC 1662, Frame Relay, RFC 2427, IPv4/IPv6 |
Operational conditions
| Operating altitude |
-60 - 4000 m |
Additionally
| Wireless technologies |
Wired |

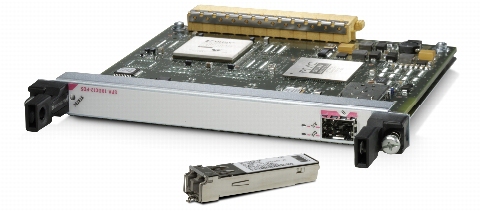

1-Port OC-12c/STM-4c POS Shared Port Adapter, Spare
The Cisco I-Flex approach combines shared port adapters (SPAs) and SPA interface processors (SIPs), providing an extensible design that enables service prioritization for data, voice, and video services. Enterprise and service provider customers can take advantage of improved slot economics resulting from modular port adapters that are interchangeable across Cisco routing platforms. The I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors that deliver line-rate performance. I-Flex enhances speed-to-service revenue and provides a rich set of quality of service (QoS) features for premium service delivery while effectively reducing the overall cost of ownership.
Product Overview
The Cisco 1-Port OC-12 POS SPA is available on high-end Cisco routing platforms, offering the benefits of network scalability with lower initial costs and easy upgrades. The Cisco SPA/SIP portfolio continues Cisco's focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows different interfaces (packet over SONET/SDH [POS], ATM, Ethernet, etc.) to be deployed on the same interface processor.
The Cisco 1-Port OC-12 POS SPA provides a single Small Form-Factor Pluggable (SFP) interface. SFP modules are available in multiple optical reaches from 2 to 80 kilometers (km).
