Processor
| Number of processors supported |
2 |
| Intel Xeon series |
E5-2600 |
| Processor socket |
LGA 2011 (Socket R) |
| Compatible processor series |
Xeon |
Memory
| Memory form factor |
240-pin DIMM |
| ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Maximum internal memory |
768 GB |
Storage
| Supported hard disk drive sizes |
2.5 " |
| Supported storage drive interfaces |
SAS, Serial ATA III |
| Hot-swap hard drive bays |
Y |
| RAID levels |
1 |
| Number of hard drives supported |
2 |
Operational conditions
| Operating relative humidity (H-H) |
5 - 93% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Storage relative humidity (H-H) |
5 - 93% |
Weight & dimensions
| Depth |
620 mm |
| Weight |
4360 g |
| Width |
203 mm |
| Height |
50 mm |
Graphics
| On-board graphics adapter model |
Matrox G200 |
Additionally
| Chipset |
Intel C600 |
| Colour of product |
Silver |
| System bus data transfer rate |
8 GT/s |
| Operating temperature range (T-T) |
10 - 35 °C |

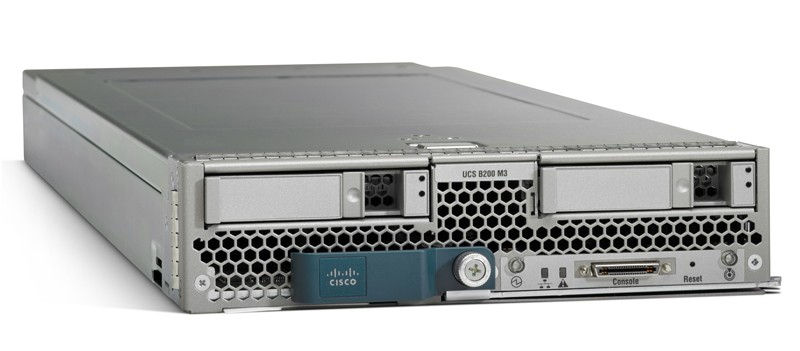

DISTI: UCS B200 M3 Blade Server w/o CPU, mem, HDD, mLOM/mezz
The Cisco® Unified Computing System™ (Cisco UCS™) combines Cisco UCS B-Series Blade Servers and C-Series Rack Servers with networking and storage access in a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The Cisco UCS B200 M3 Blade Server delivers performance, versatility, and density without compromise. It addresses the broadest set of workloads, from IT and web infrastructure, through distributed database. The enterprise-class Cisco UCS B200 M3 Blade Server further extends the capabilities of the Cisco UCS portfolio in a half-width blade form factor. The Cisco UCS B200 M3 harnesses the power of the latest Intel® Xeon® processor E5-2600 and E5-2600 v2 product families, with up to 768 GB of RAM (using 32-GB DIMMs), two disk drives, and up to dual 4x 10 Gigabit Ethernet throughput. In addition, Cisco UCS has the architectural advantage of not having to power and cool excess switches in each blade chassis. With a larger power budget per blade server, Cisco can design uncompromised expandability and capabilities in its blade servers, as evidenced by the new Cisco UCS B200 M3, with its leading memory slot and drive capacity.
