Ports & interfaces
| Serial ports quantity |
2 |
| VGA (D-Sub) ports quantity |
2 |
Processor
| Number of processors supported |
4 |
| Intel Xeon series |
E5-4600 |
| Built-in processor |
N |
Design
| Rack rails |
Y |
| LED indicators |
Y |
| Form factor |
2U |
Expansion slots
| PCI Express x16 slots |
2 |
| PCI Express x8 slots |
5 |
| PCI Express slots version |
3.0 |
Networking
| Ethernet LAN data rates |
10000 Mbit/s |
Storage
| Supported hard disk drive sizes |
2.5 " |
| Supported storage drive interfaces |
SAS, Serial ATA |
| Hot-swap hard drive bays |
Y |
| Number of hard drives supported |
16 |
Memory
| Supported RDIMM clock speeds |
1866 MHz |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

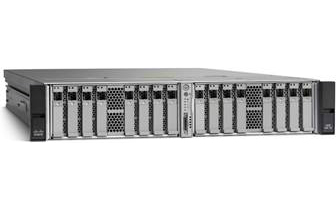

UCS C420 M3 without CPUs, memory DIMMs, disk drives, PCIe cards, or power supplies
The Cisco UCS® C420 M3 Rack Server is a high-density, 4-socket, 2-rack-unit (2RU) rack server designed for computing, I/O, storage, and memory-intensive standalone applications. The Cisco UCS C420 M3 extends the capabilities of the Cisco Unified Computing System™ (Cisco UCS) using Intel Xeon processor E5-4600 Series multicore processors to deliver increased performance and efficiency.
